Electron Beam Metal 3D Printer
JAM-5200EBMPlus
Electron Beam Quality
一Ensuring Build to Build Consistency for serial production in metal additive manufacturing
Using the electron beam control technology from the world's highest performance electron microscope and electron beam lithography system for semiconductor manufacturing, JEOL has developed an advanced electron beam powder bed fusion 3D printer that can produce high-density and strength parts with a high-power and fast electron beam. JEOL’s Electron Beam Metal 3D Printer produces parts that meet regulated industry standards and requirements, allowing for manufacturers to scale their production demands.
Features

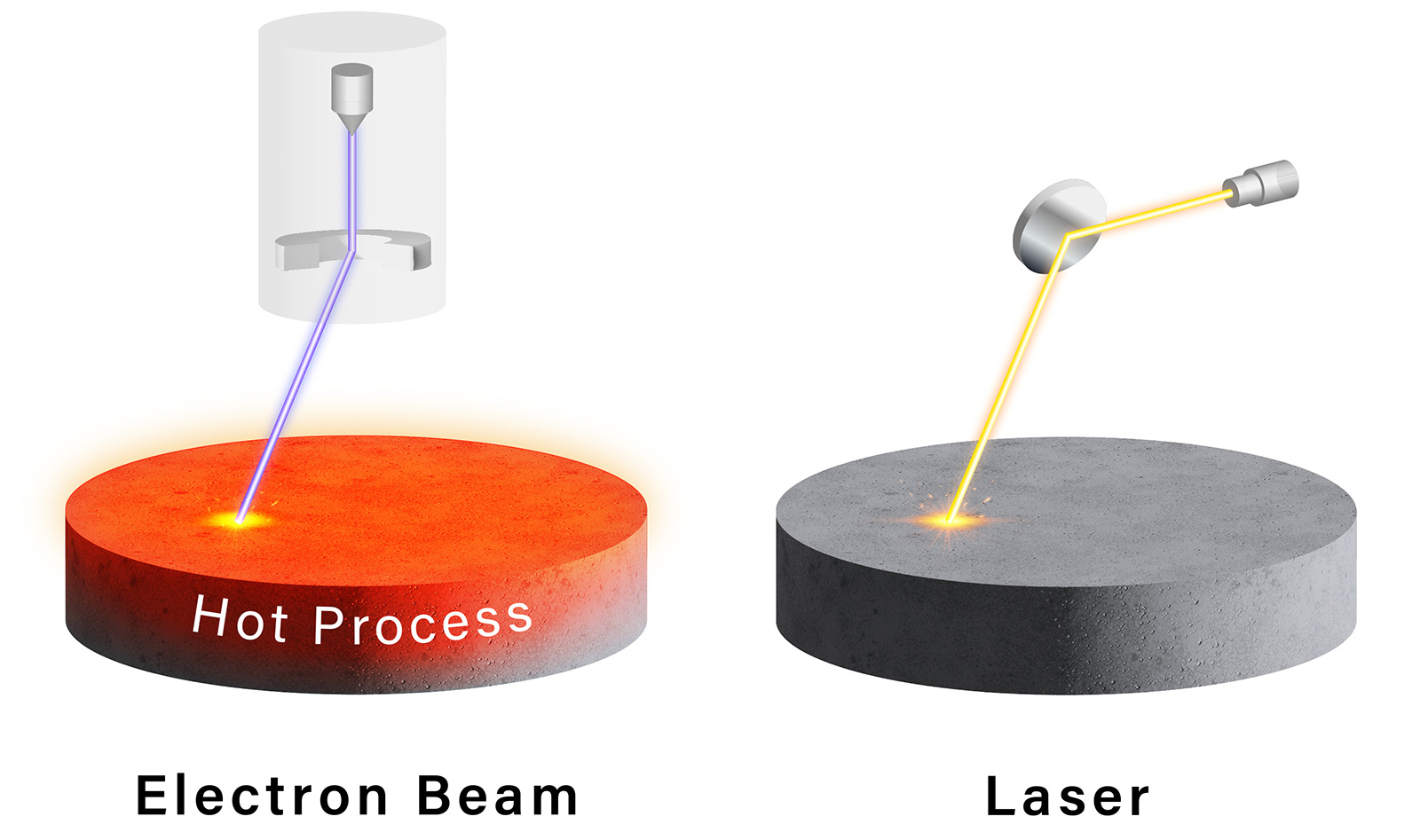

01. Hot process
Preheating using electron beam to eliminate distortion and cracking
Electron beam additive manufacturing reduces the sudden temperature change of a build due to preheating using an electron beam (hot process). Therefore, the parts will have little residual stress, resulting in reducing distortion and cracks. On the other hand, laser additive manufacturing tends to accumulate residual stress by repeated heating and rapid cooling, resulting in deformation and cracks of the build depending on the material and shape.
Laser additive manufacturing requires strong supporting material to avoid such deformation and cracks. Electron beam additive manufacturing can reduce the supporting material since the surrounding powders are lightly bonded to each other to support the build, which is an advantage.
Moreover, while the laser method needs to alleviate the stress inside the build through a heating processing after manufacturing, the electron beam method does not require such post-processing.

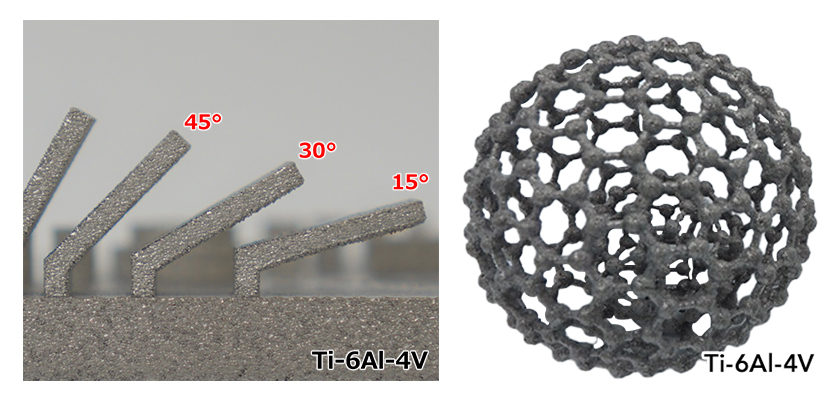

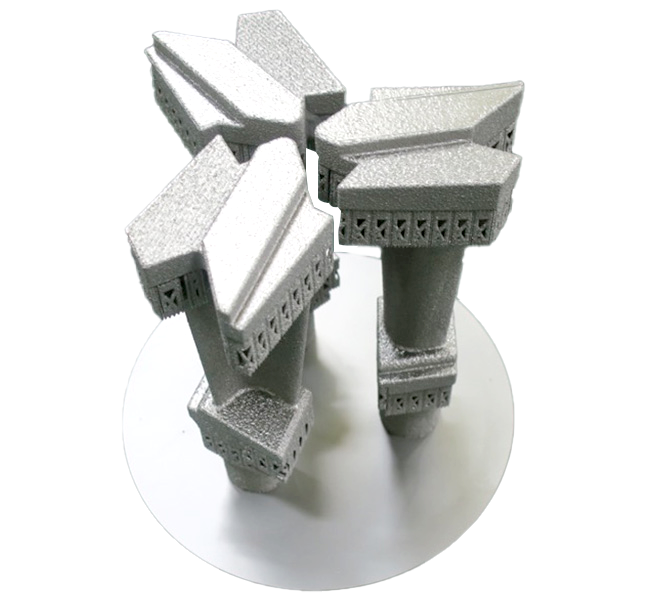

Manufacturing low angle overhang section and
curved section without supports
02. High vacuum environment
Prevents oxidation and reduces potential impurities
High purity maintained by high vacuum environment
Electron beam additive manufacturing performs manufacturing under a high vacuum. Therefore, oxidation of the build and inclusion of impurities can be reduced.
On the other hand, laser additive manufacturing performs manufacturing in an inactive gas environment (atmospheric pressure). In some cases, oxygen and water may remain. Therefore, attention is needed for active metals such as titanium alloy, etc.
03. BSE Monitoring System
Real Time In situ Process Monitoring for Defect Detection

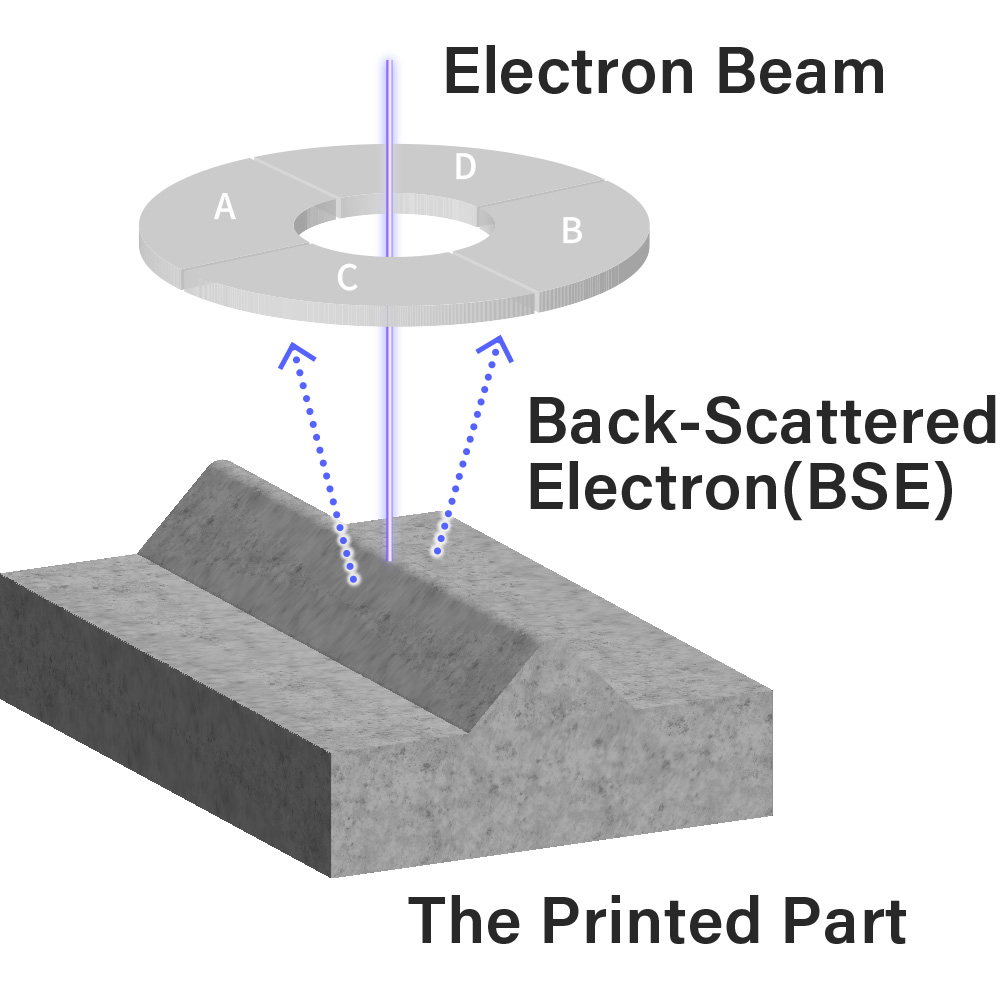

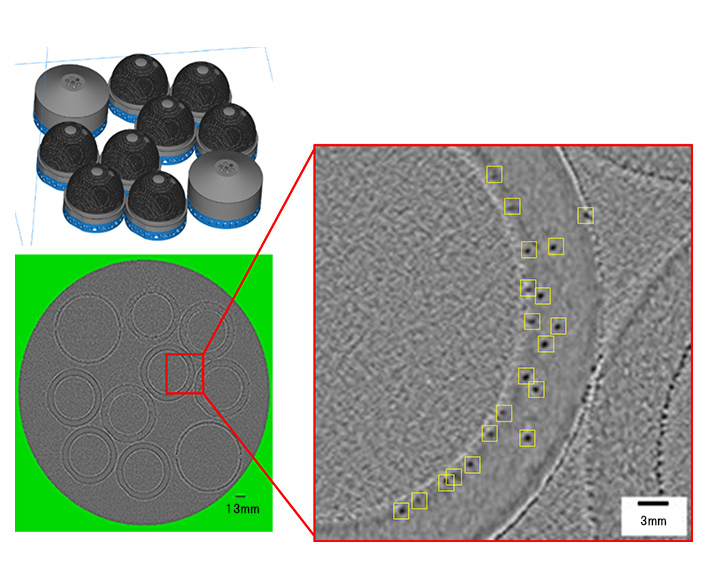

BSE image monitoring function
Using our technology as an electron microscope manufacturer, we have developed a BSE (back-scattered electron) image monitoring function.
With backscattered electron imaging (BSE), a BSE image of the build surface is obtained after each layer is melted, allowing for quality control during the build process. In addition, our Defect Detection software automatically detects voids (defects) and surface topography larger than a certain size and visualizes them as images.
This enables quality control to be more efficient during the build process, as part non-conformances can be identified before build completion.
04. Multi-dot scanning
Improving surface quality of overhangs and microstructural control
A single electron beam can be irradiated at any position at ultra-high speed
Unlike ordinary line scanning, A single electron beam can be scanned to any position at ultrahigh speed, creating multiple melt pools simultaneously. Fine control of thermal history enables improved microstructural control and improved surface quality, particularly in overhang regions.
Specifications
Specifications
In addition to the standard specifications (STD-250), several optional build units are available to optimize the printing of various metals. The ultra-high-temperature specification (UHT-100) is a build unit for metals that have high melting points such as tungsten. It has extremely high heat retention performance, and it is possible to preheat the powder bed up to 1,600°C. In addition, the small-scale test specification (HT-65) enables manufacturing with a small amount of powder, which is effective for research and development of expensive materials.
| Build unit | Standard specifi cation STD-250 |
High-temperature specifi cation HT-180 |
Small-scale test specifi cation HT-65 |
Ultra-high-temperature specifi cation UHT-100 |
|---|---|---|---|---|
| Maximum build volume | Φ 250 mm × 400 mm H | Φ 180 mm × 320 mm H | Φ 65 mm × 100 mm H | Φ 100 mm × 150 mm H |
| Powder bed surface temperature |
Maximum 900°C | Maximum 1,200°C | Maximum 1,200°C | Maximum 1,600°C |
| Maximum electron beam power |
6 kW (preheating) 1.5 kW (melting) |
8.4 kW (preheating) 1.5 kW (melting) |
||
| Main usable material | Ti-6Al-4V Pure copper※ |
Ni718 | Ti-6Al-4V Ni718 |
Tungsten |
※ A part for Cu build must be required in addition to the standard specifications. The maximum build volume is Φ 250 mm × 150 mm H.
Option
AM-22010PRS Metal Powder Recovery System
A blasting device to remove lightly sintered powder surrounding the build after completion of manufacturing. Metal powders collected through blasting are reused for manufacturing.
AM-22010PRS specification is for a nitrogen atmosphere for reactive materials such as titanium alloy, etc.

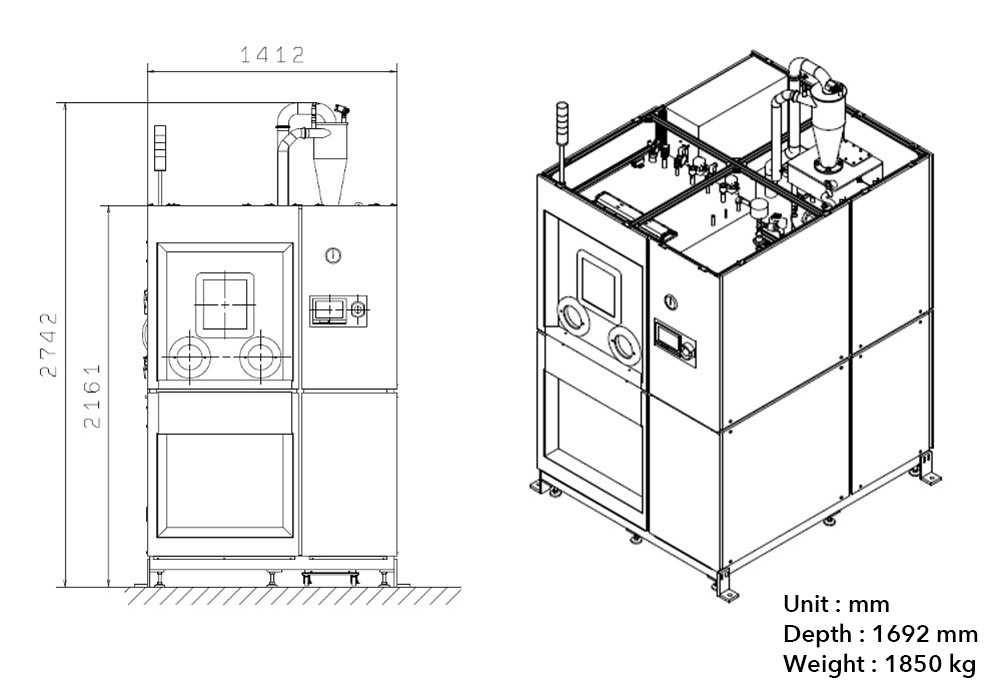

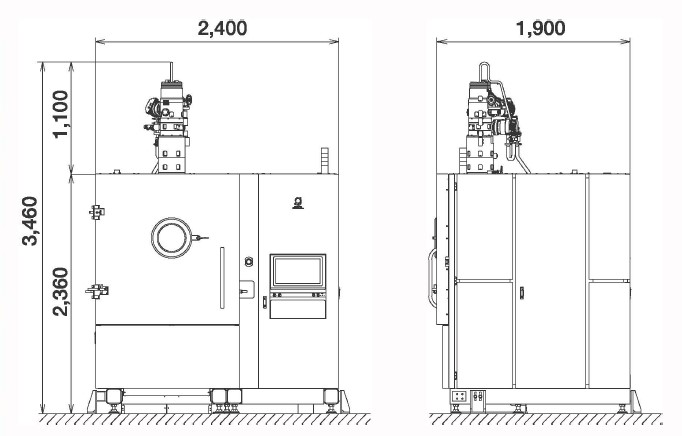

Dimensions
Catalogue Download

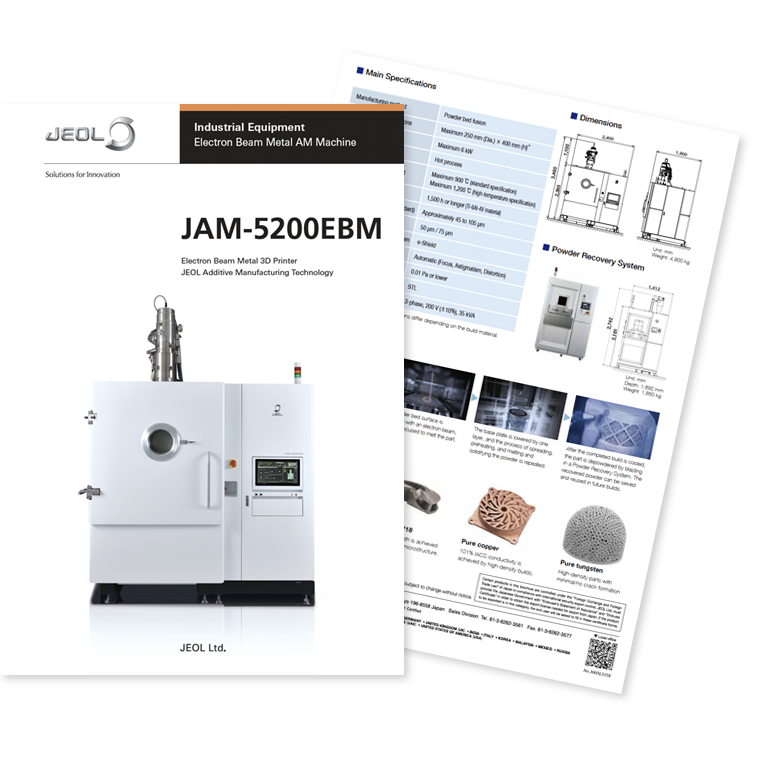

JAM-5200EBMPlus_Product Catalog
This is the product catalogue for the electron‑beam metal 3D printer "JAM‑5200EBMPlus". It compiles the features, specifications, and manufacturing process into one volume.

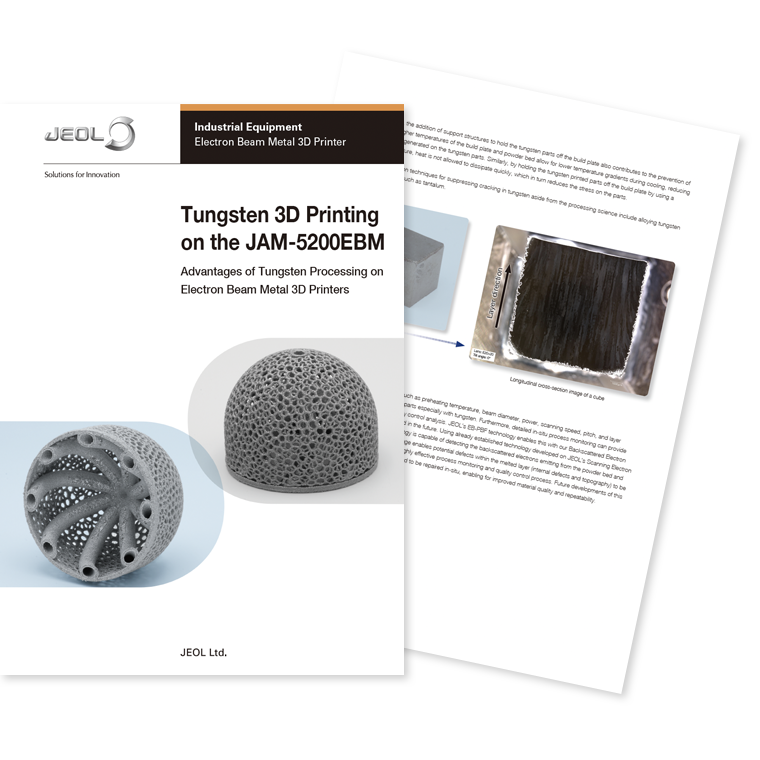

Tungsten 3D Printing on the JAM-5200EBM
━ Advantages of Tungsten Processing on Electron Beam Metal 3D Printers
This technical document explores the potential applications, challenges, and future prospects of EB-PBF technology in manufacturing tungsten components.

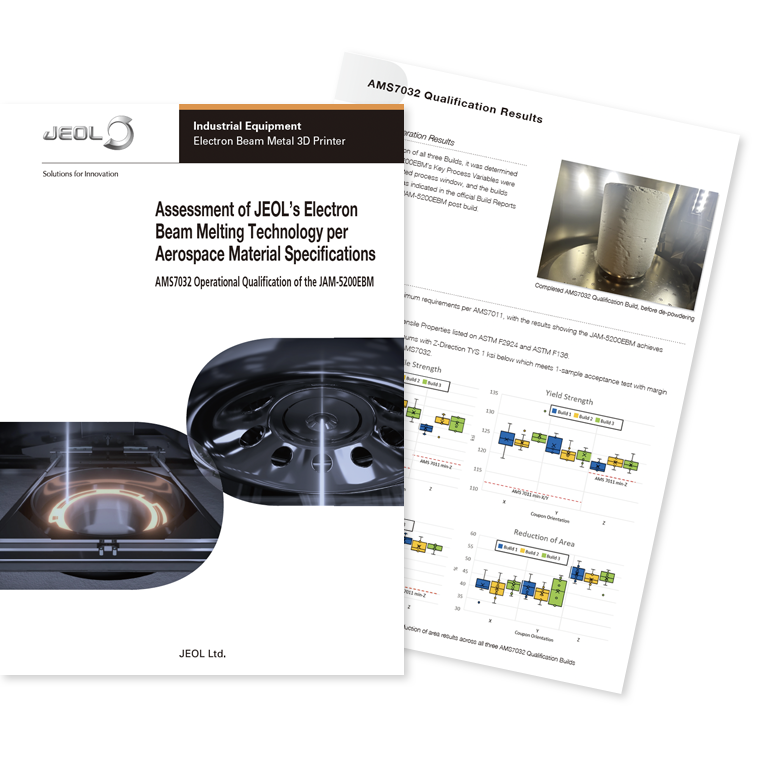

Assessment of JEOL’s Electron Beam Melting Technology per Aerospace Material Specifications
━ AMS7032 Operational Qualification of the JAM-5200EBM
The JAM‑5200EBM is AMS7032‑certified, establishing a highly reliable manufacturing process for aerospace materials.
Gallery
Titanium Alloy (Ti-6Al-4V)

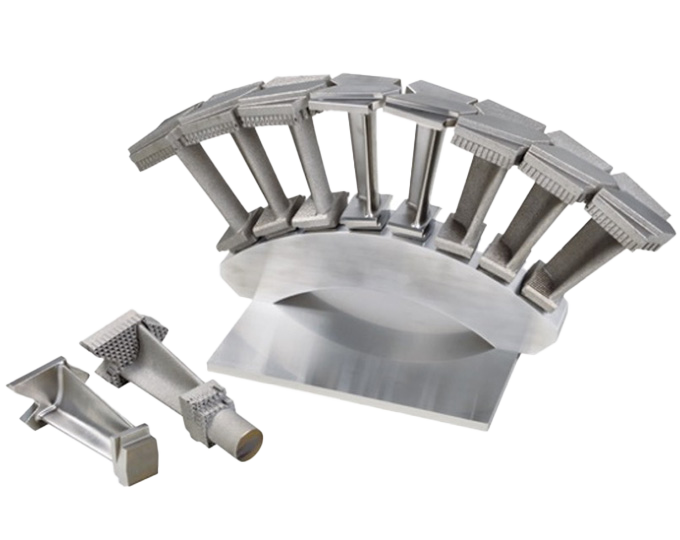

Low-pressure Turbine Blades for Jet Engine
(Height: 400 nm)
Generator Turbine Blade
(Height 180 mm)

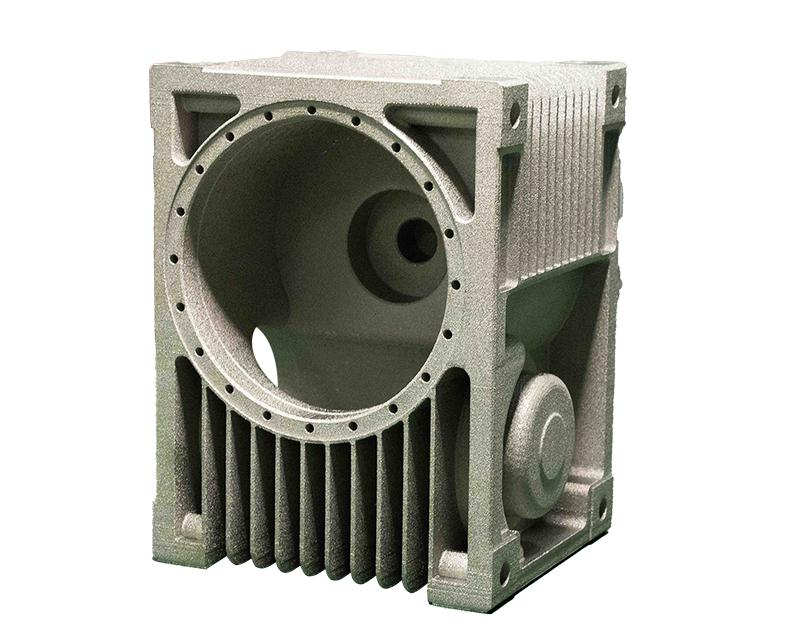

Gearbox
(Height 250 mm)

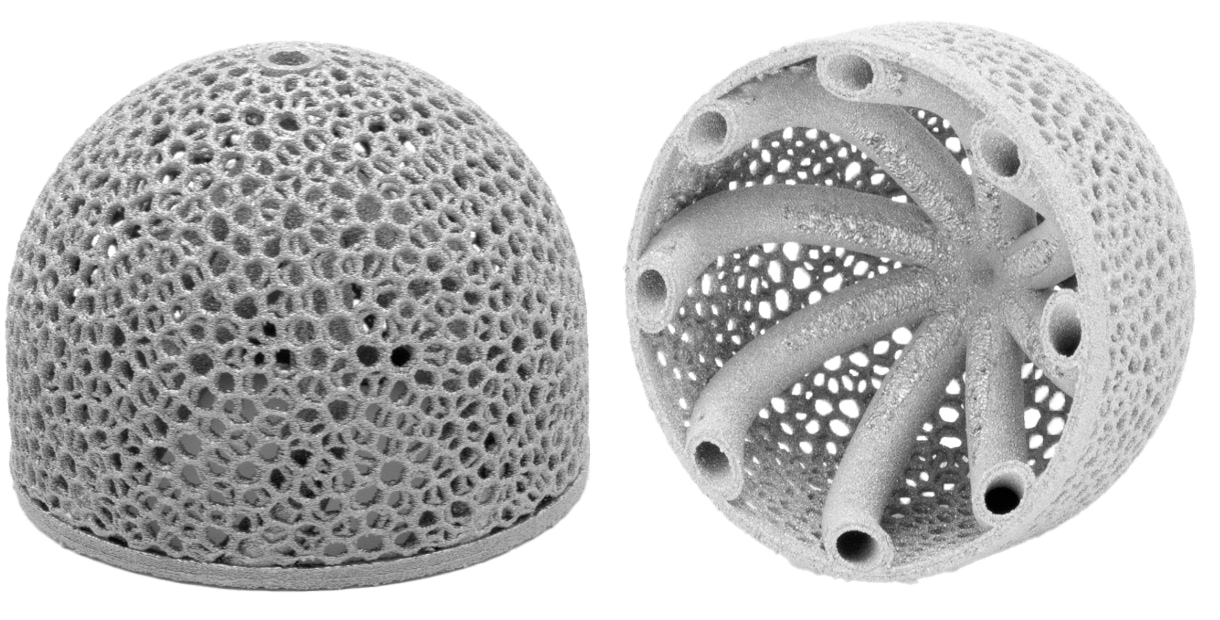

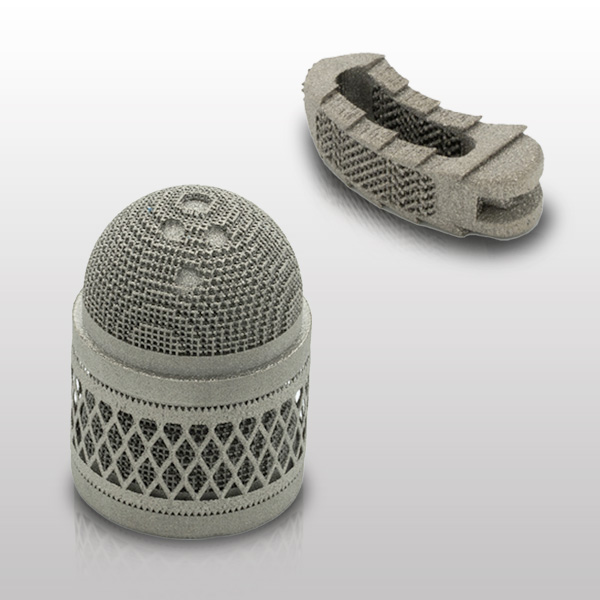

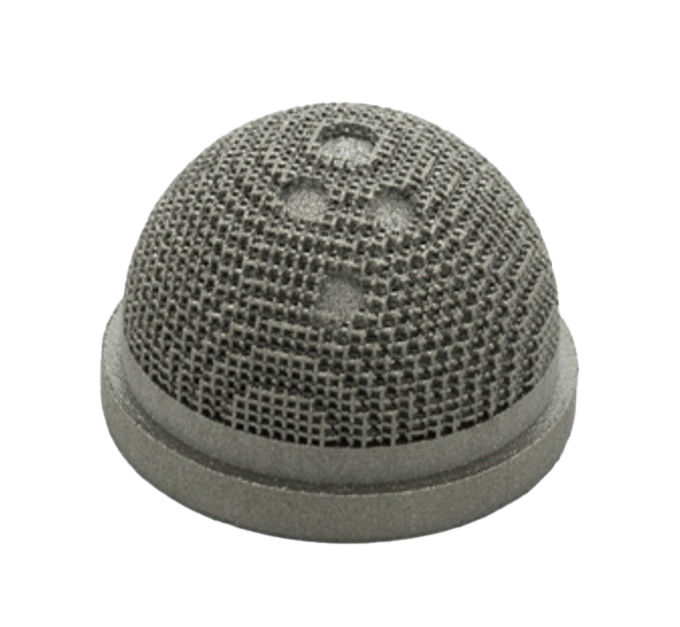

Artificial Hip Joint Cup

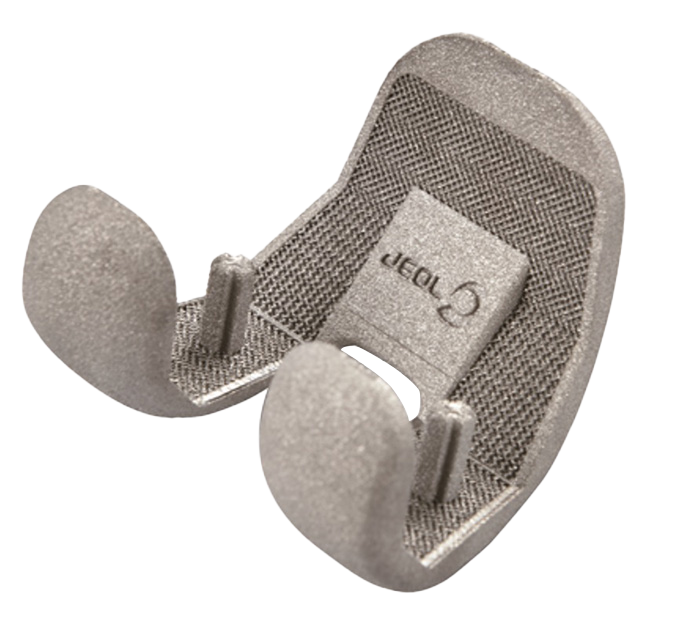

Artificial Knee Joint (Femoral component)
Printing Titanium Alloys with Metal 3D Printer|Explanation of the Difference and Utilization of Laser/Electron Beam
In this column, we will explain the basic knowledge of titanium alloy 3D printing, the difference between LB-PBF and EB-PBF, and examples of utilization in an easy-to-understand manner.
Pure Copper

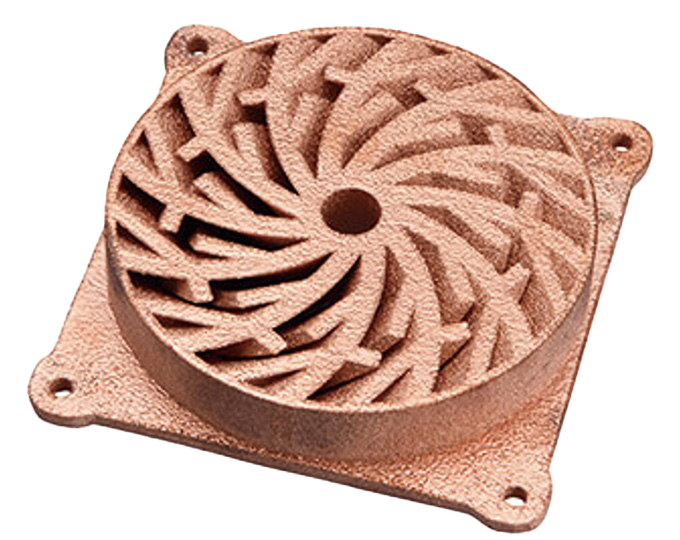

Heatsink
(100 mm)

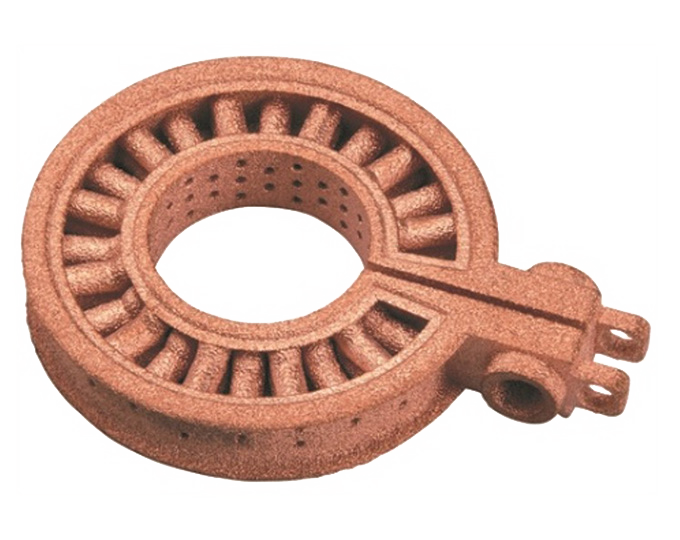

High-Frequency Heating (Hardening) Coil
Provided by NDK Inc.

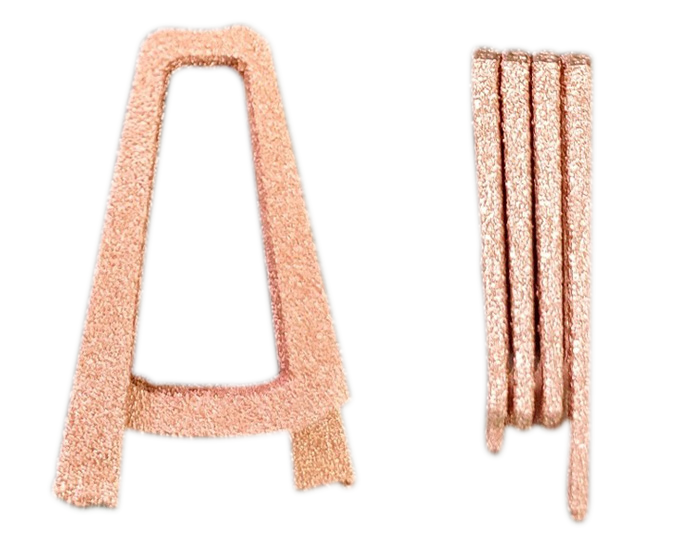

Coil for Small Motors
Provided by Denso Corporation

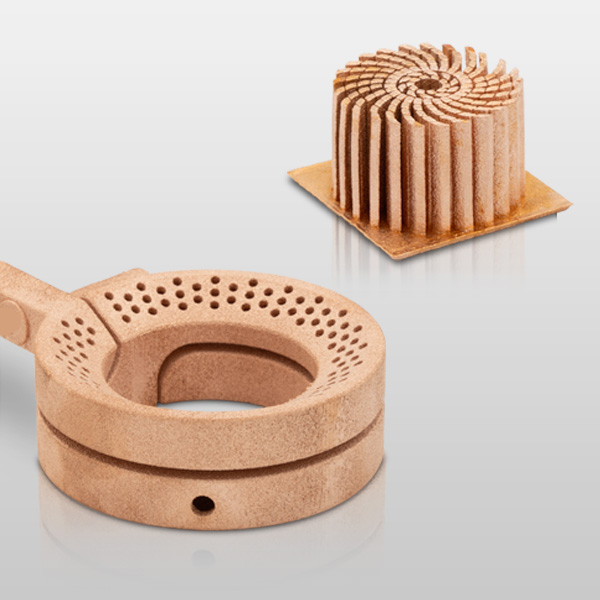

3D Printing of Copper: Technical Challenges and Solutions
By using 3D printers for additive manufacturing of copper, it is now possible to produce complex shapes that were not achievable with traditional processing methods, which has recently attracted significant attention.
This column provides an easy-to understand explanation on manufacturing of copper using 3D printers.

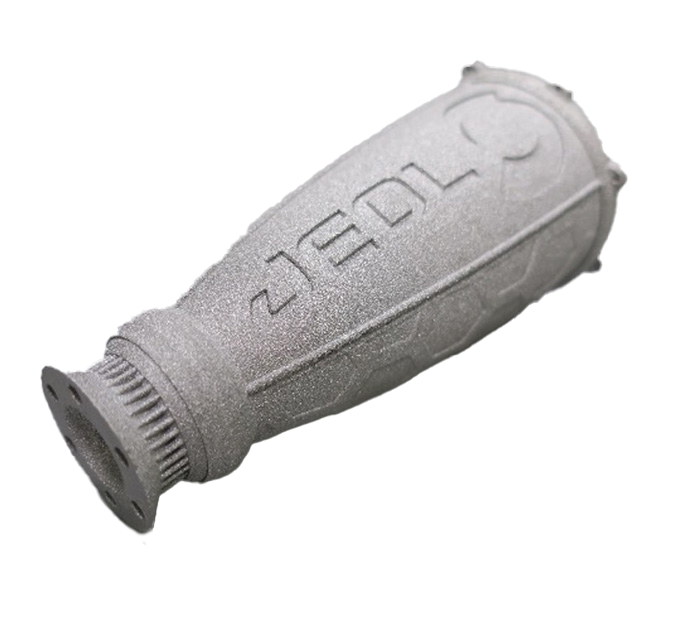

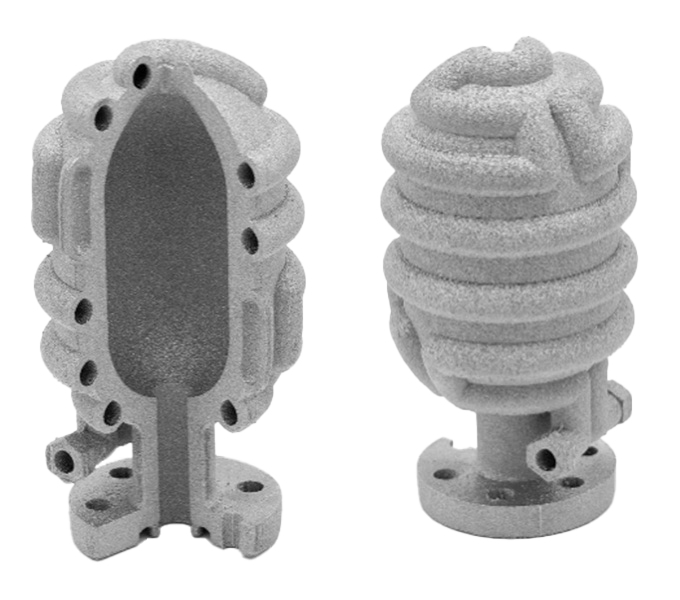

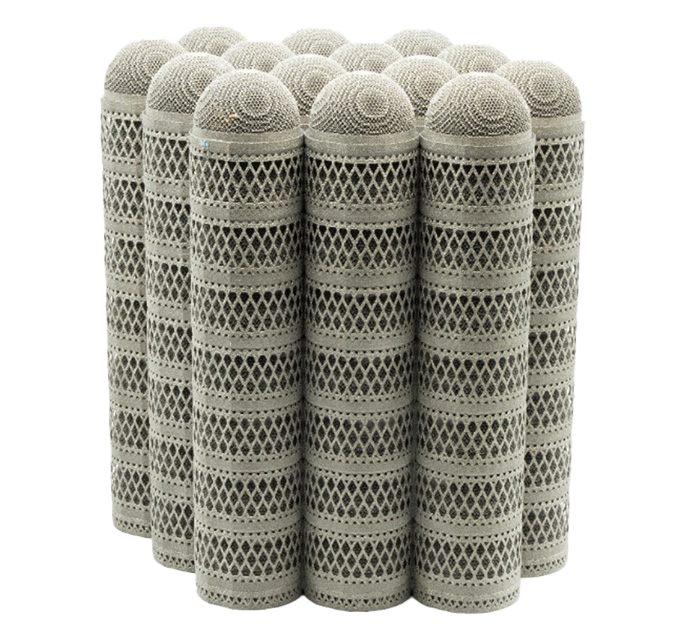

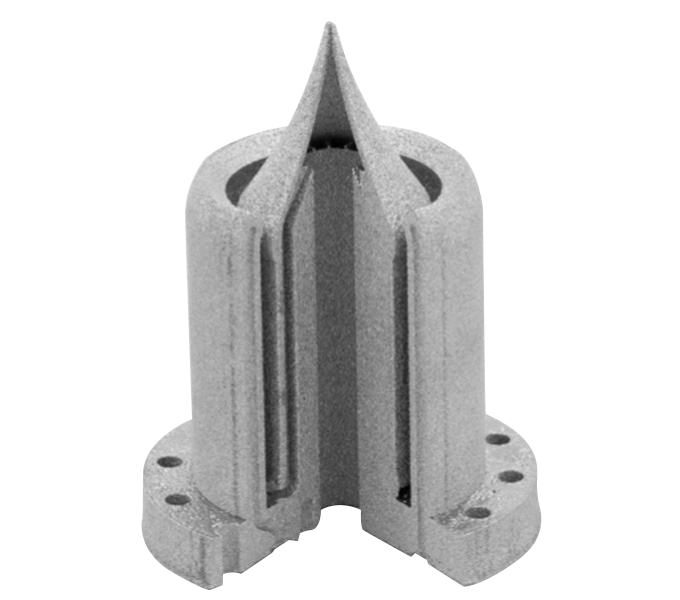

Pure Tungsten
Φ100 mm × 143 mm (H)
Φ70 mm × 130 mm (H)
Φ65 mm × 55 mm (H)
Φ65 mm × 123 mm (H)
Φ70 mm × 130 mm (H)
Additive Manufacturing of Tungsten by Metal 3D Printer: The State-of-the-art Technology to Produce High Melting Point Metal
This column describes the state-of-the-art technology on additive manufacturing of tungsten and its challenges, along with how to overcome these challenges. In addition the current situation of tungsten fabrication including the issue of densification and cracks, the characteristics of major manufacturing methods and the latest trends.
Ni-based Alloy 718
Impeller
(Φ170 mm)

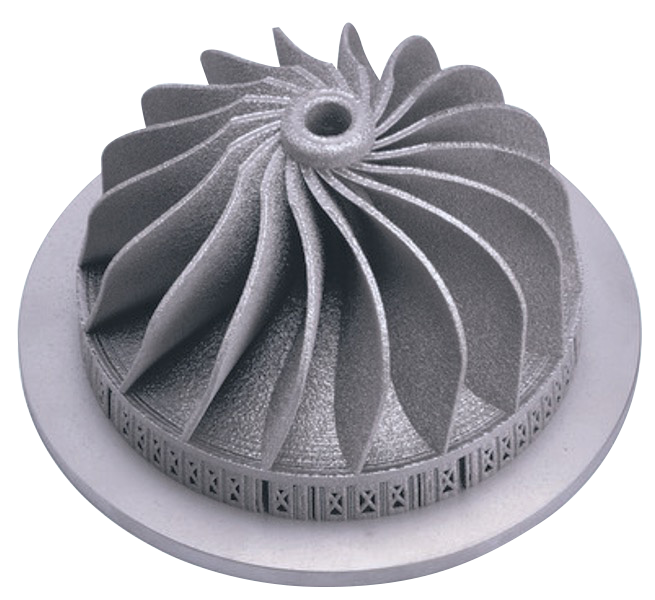

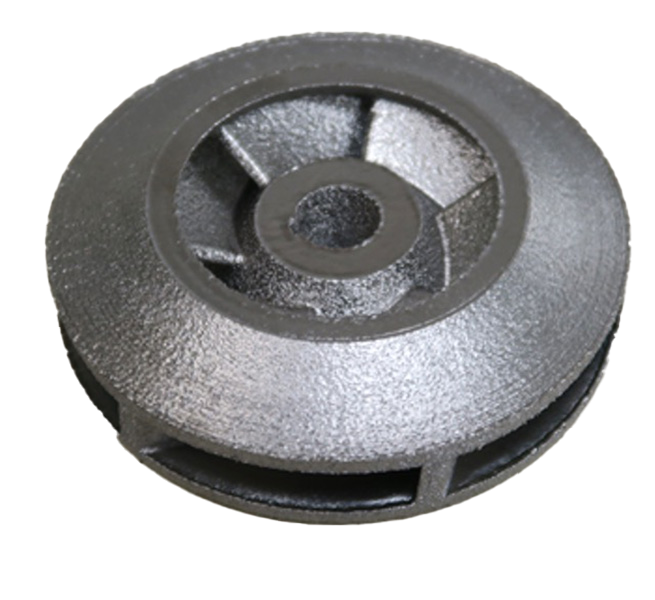

Closed Impeller
(Φ100 mm)
Generator Turbine Blade
(Height 180 mm)
