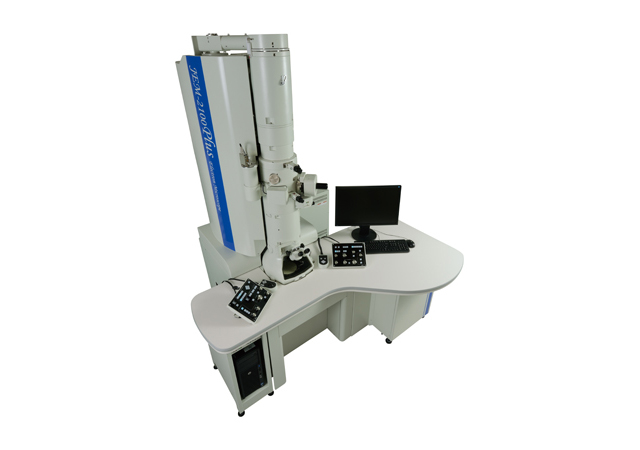

JEM-2100Plus
Electron Microscope
The JEM-2100Plus is a multi purpose transmission electron microscope, which combines the proven JEM-2100 optic system with an advanced control system for enhanced ease of operation. Achieving superior performance through intuitive operation, the JEM-2100Plus provides solutions to a wide range of applications from materials science to medical/biological studies.
Features
Easy operation
64 bit Windows® compatible control software, TEM Center, is an intuitive user interface designed to maximize ease of operation.
Enhanced integration
The TEM Center allows the user to control optional accessories such as high resolution camera and scanning image (BF/DF) observation device through intuitive user-system interaction.
Automated functions
The JEM-2100Plus comes with a complete range of automated functions, including auto focus, auto contrast/brightness, auto exposure, auto montage, drift compensation, and stage navigation.
Image view/edit software
Viewer software supports off-line image viewing and editing.
Notices:Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
Specifications
| Configuration | Ultrahigh resolution※1
(UHR) |
High resolution※1
(HR) |
High specimen tilt※1
(HT) |
Cryo※1
(CR) |
High contrast※1
(HC) |
|---|---|---|---|---|---|
| Resolution(nm) | |||||
| Point | 0.194 | 0.23 | 0.25 | 0.27 | 0.31 |
| Lattice | 0.14 | 0.14 | 0.14 | 0.14 | 0.14 |
Specify either configuration (UHR, HR, HT, CR or HC) when ordering the JEM-2100Plus.
Catalogue Download
JEM-2100Plus Electron Microscope
Application
Application JEM-2100Plus
Analysis of Asbestos –Distinguishing fine fiber one by one–

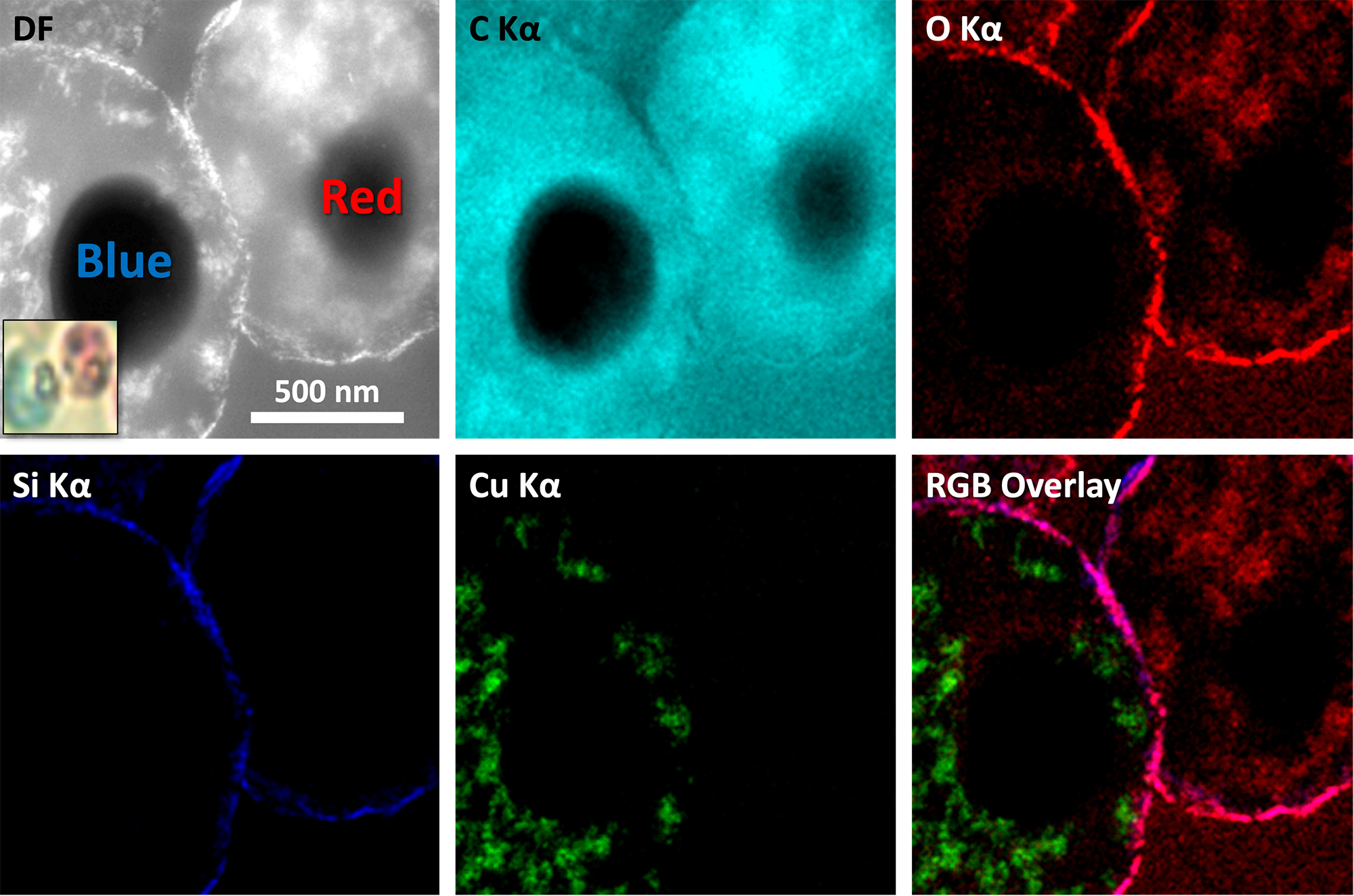

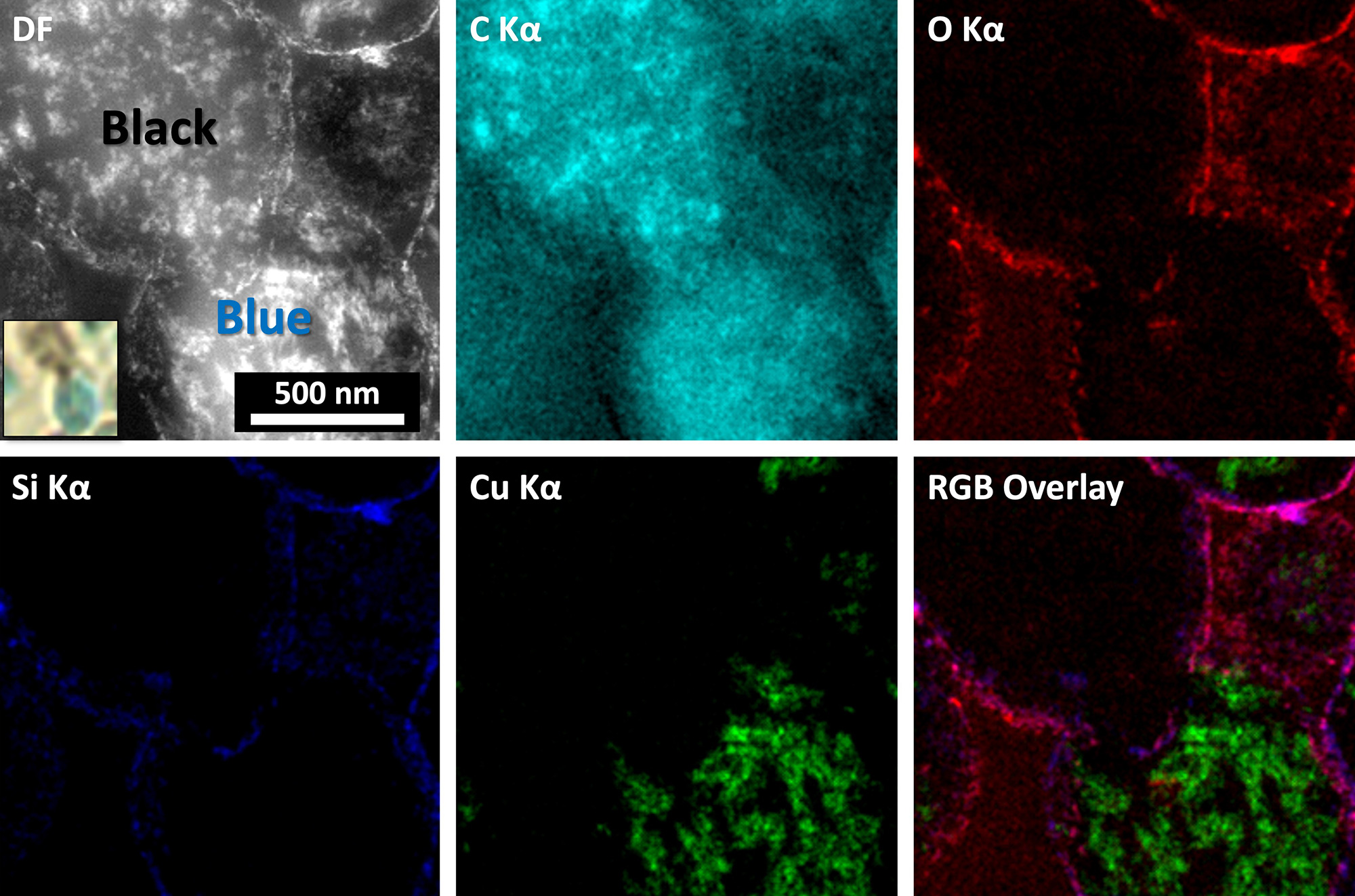

Gallery
Related Products
Related Products
SightSKY Camera (EM-04500SKY) High sensitivity, Low noise fiber coupling CMOS camera
High-sensitivity, low-noise 19 M pixel CMOS sensor enables clearer imaging with fine specimen details observable even at low electron doses.
Its global shutter and high frame rate (58 fps/full pixel mode) enable image series acquisitions with less artifacts during dynamic observation.
"SightX" camera system control software provides user-friendly operations.
