Short distance determination by CP-VC - how does it work?

NM140017E

Short distance measurements between 1H-X can be successfully demonstrated by the simple and robust method of cross-polarization with variable contact time (CP-VC) at  fast MAS (> 60 kHz). The robustness ironically comes from sensitivity to rf field  strength. Even a small mismatch of CP condition gives significant change of peak  positions. Fortunately, the signal intensity is also greatly reduced because of the  severe CP matching at fast MAS. There is always rf-inhomogeneity in the sample coil,  thus a part of sample always satisfied perfect CP condition, giving a very strong signal  at a proper position. The overall peaks always gives singularities at d/21/2 even if rf-field strength doesn't satisfy precise CP conditions. In this sense, rf-inhomogeneity helps us to measure accurate CP-VC signal because of its sensitivity to rf field  mismatch.

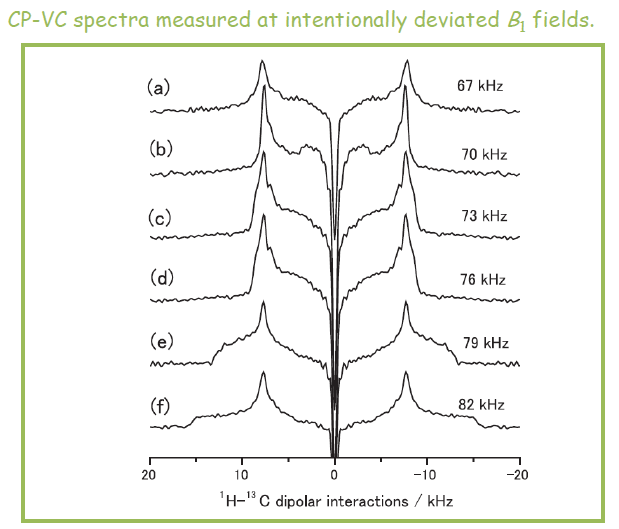

CP-VC spectra measured at intentionally deviated B1 fields.

Reference

P. Paluch, T. Pawlak, J.P. Amoureux, M.J. Potrzebowski, J. Magn. Reson. 233 (2013) 56–63.
P. Paluch, J. Trébosc, Y. Nishyama, M. Potrzebowski, M. Malon, J.-P. Amoureux, J. Magn. Reson. 252 (2015) 67-77.
