Frequently-Used Spin Trap Reagents

ER060002E

When measuring short-lived radicals in solutions that include active oxygen, it is common to use a spin trap reagent. The spin trap reagent itself is not a radical, but it traps radicals and gives a long lived adduct, a NO radical. As the lifetime of this is long, good measurements at room temperature are possible. Depending on the combination of radical type and spin trap reagent, the stability of each adduct differs. For example, whilst the hydroxyl radical (HO) is very short lived, the half life of the DMPO adduct may be several hours, depending on the composition and temperature of solution to be used.

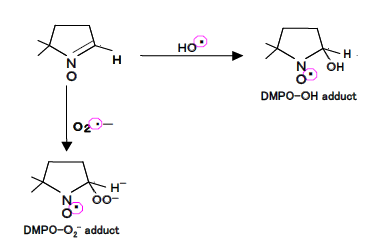

In the case of the DMPO adduct of superoxide anion radical (O2), the half life is 1 to 2 minutes in neutral phosphate buffer solution. These addition reactions are shown above. There are two types of spin trap reagent, Nitron and Nitroso series, and are used according to radical type and reaction.



The following are the major spin trap reagents available:-

5,5-dimethyl-1-pyrroline-N-oxide
(DMPO)
3,3,5,5-Tetramethyl-1-pyrroline-N-oxide (M4PO)

Molecular weight:113
Application:O2・-,HO, C-center radical
Characteristics:Most popular water-soluble trap reagent
After opening, keep cold avoiding light  and oxygen.

3,3,5,5-Tetramethyl-1-pyrroline-N-oxide
(M4PO)
3,3,5,5-Tetramethyl-1-pyrroline-N-oxide (M4PO)

Molecular weight:141
Application:same as DMPO, reaction speed with HOis high.
Characteristics:Hard to generate Absorbs moisture easily, CAUTION.

N-tert-Buthyl-α-phenylnitrone
(PBN)
N-tert-Buthyl-α-phenylnitrone(PBN)

Molecular Weight:177
Application:C-center radical,HO(beer flavor quality)
Characteristics:Relatively stable and easy to handle

3,5-Dibromo-4-nitrosobenzenesulfonic acid sodium salt
(DBNBS)
3,5-Dibromo-4-nitrosobenzenesulfonic acid sodium salt  (DBNBS)

Molecular Weight:357
Application:C-center radical
Characteristics:Nitroso series
Poor solubility in water
