Airtight Spacer for Solid State NMR

NM190009E

The airtight spacer enables to perform non exposed solid state NMR measurements.
The jigs and the tools for the spacer allow easy and convenient attaching/detaching even in a globe box.

高気密スペーサー

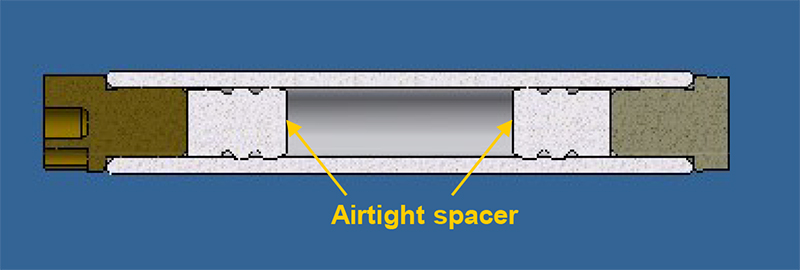

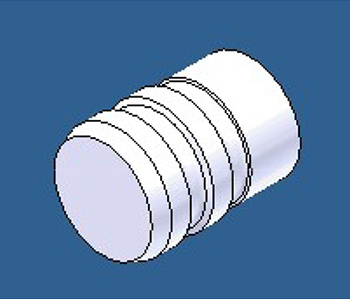

Airtight Spacer
高気密スペーサー

Sealing performance

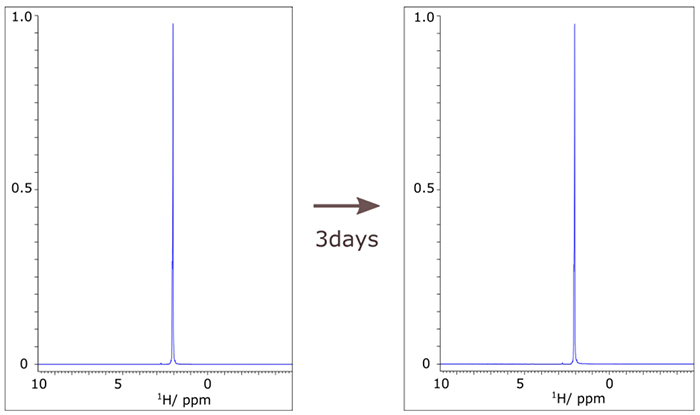

1H spectra of acetone @ 5kHz MAS,30°C

Sealing performance

Acetone is highly volatile solvent. But, no spectrum and weight change were observed after 3 days @ 5kHz MAS.

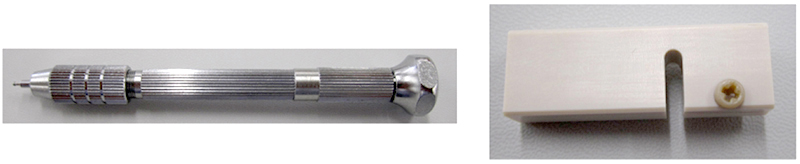

Jigs and Tools for the airtight spacer

Jigs and Tools for the airtight spacer
  • The spacer is single use.
  • Compatible with the 3.2mm rotor.
  • The maximum MAS frequency while using the spacer is 20kHz.
  • Jigs and tools for the airtight spacer are under development. The design is subject to change.
Please see the PDF file for the additional information.
Another window opens when you click.

PDF 762.4KB
