JNM-ECZR NMR Spectrometer Multiple Receiver Capabilities
NM170006E

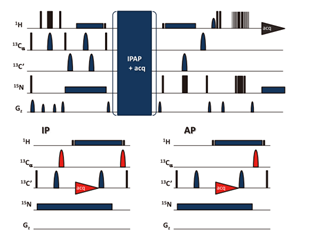

Pulse sequence for parallel 2D(H)CACO/3D(H)CA(CO)NH experiment*1
JNM-ECZR is equipped with one receiver per 2 RF transmitter module. Multiple receiver functionality is included with the addition of optional RF transmitter receiver modules.
JNM-ECZR allows users to easily collect data with multiple receivers. Pulse sequences can easily be adapted with the addition of a few lines of code to collect multiple receiver data without the need to move any cables or modules.
The diagram (left) shows an example of multiple receivers for the parallel collection of 3D (H)CA(CO)NH 1H detected and 2D (H)CACO 13C detected multi-dimensional data sets in a single experiment.
JNM-ECZR allows users to easily collect data with multiple receivers. Pulse sequences can easily be adapted with the addition of a few lines of code to collect multiple receiver data without the need to move any cables or modules.
The diagram (left) shows an example of multiple receivers for the parallel collection of 3D (H)CA(CO)NH 1H detected and 2D (H)CACO 13C detected multi-dimensional data sets in a single experiment.

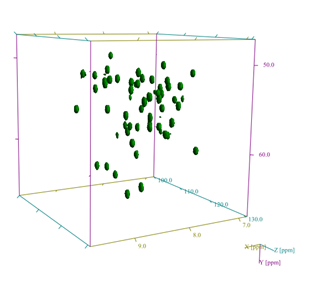

1H detected 3D (H)CA(CO)NH spectra of 13C / 15N labelled ubiquitin

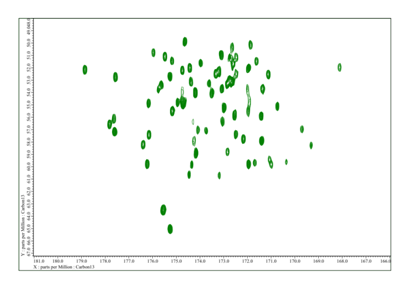

13C detected 2D (H)CACO spectra of 13C / 15N labelled ubiquitin acquired in parallel with 3D (H)CA(CO)NH spectra
Spectrometer: JNM-ECZ900R
Sample :1mM 13C / 15N labelled ubiquitin in 90%H 2O / 10%D 2O 1H detected 3D (H)CA(CO)NH spectra of 13C/ 15N labelled ubiquitin
Reference
* 1 Kupce E, Kay L E, Freeman R (2010) J. Am. Chem. Soc 132: 18008-18011
