Comparison of H2BC and 1,1-ADEQUATE

NM160003E

H2BC (Heteronuclear 2-Bond Correlation) and 1,1- ADEQUATE (Adequate Sensitivity DoublE QUAntum Transfer Experiment) are used to detect 2-bond C-H correlations when it is difficult to differentiate 2-bond correlations from 3-bond correlations by a combination of COSY and HMBC experiments. Here we compare the major features of H2BC and 1,1-ADEQUATE.

4-Methylumbelliferone
4-Methylumbelliferone

H2BC is a more sensitive experiment than 1,1-ADEQUATE. However, H2BC does not show correlations between protons and quaternary carbons. Therefore, when analyzing compounds that have many quaternary carbons, such as 4-methylumbelliferone, 1,1-ADEQUATE can provide many more correlations than H2BC. On the other hand, 1,1-ADEQUATE requires careful optimization of the 1JCC delay according to the chemical structure.

【H2BC】

  • Observe 2JCH correlations only
  • Higher sensitivity than 1,1-ADEQUATE
  • Cannot observe correlations between protons and quaternary carbons
  • Careful optimization of parameters not required

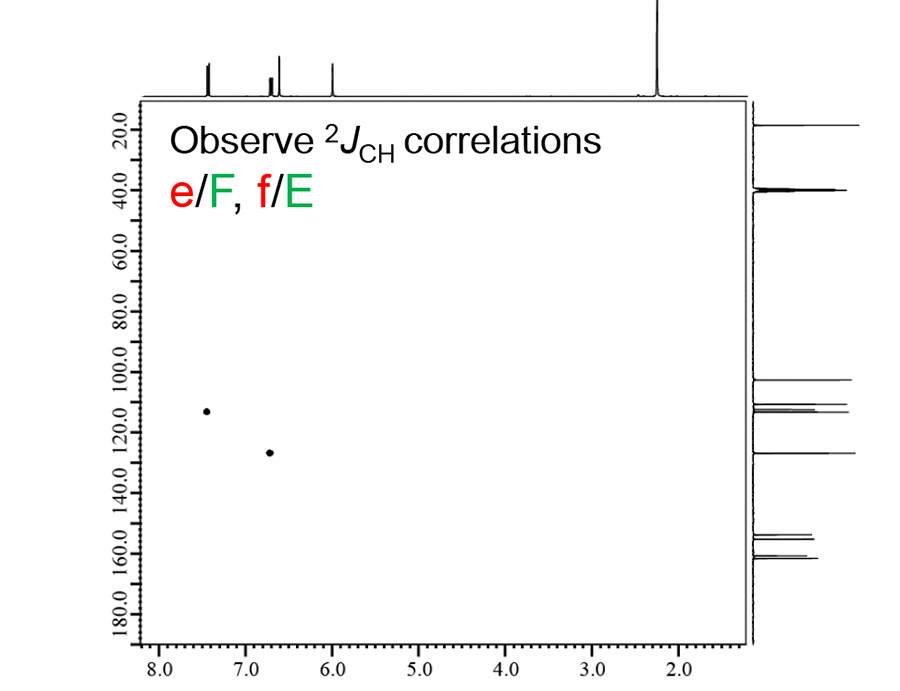

H2BC

H2BC, 4 scans, 25 mins

【1,1-ADEQUATE】

  • Observe 1JCH, 2JCH correlations
  • Lower sensitivity than H2BC
  • Observe quaternary carbons
  • Careful optimization of 1JCC required

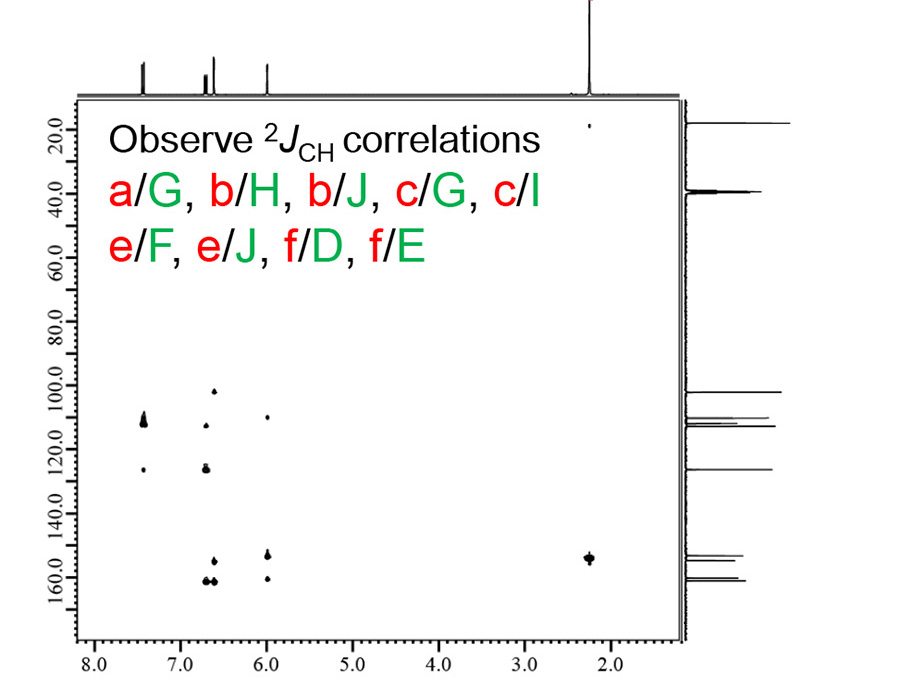

1,1-ADEQUATE

1,1-ADEQUATE, 48 scans, 7 hrs

Instrument: JNM-ECZ400S, ROYALPROBE™
Sample: 100mg 4-methylumbelliferone in DMSO-d6

Please see the PDF file for the additional information.
Another window opens when you click.

PDF 221.9KB
(Update: 2021/03/16)
