Quick measurements of 15N solid-state NMR at natural abundance by high-sensitivity 8 mm MAS

NM120010E

8 mm MAS realizes highly sensitive observations of 15N NMR. 8 mm MAS achieves 10 times quicker measurements than 4 mm MAS with almost identical resolution. The combination of a very large volume of 616 uL, a fast MAS rate of 8 kHz, and strong rf field irradiations provide amazing high resolution and sensitivity even with narrow-bore magnet (54 mm).

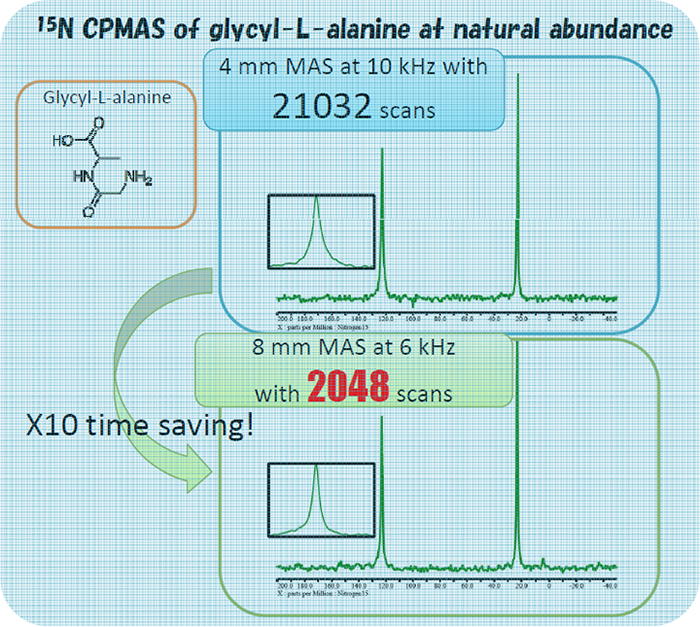

15N CPMAS of glycyl-L-alanine at natural abundance
15N CPMAS of glycyl-L-alanine at natural abundance

Enjoy 15N NMR at natural abundance!
