Extremely High Sensitivity Cryogenic Probe, UltraCOOL Probe

NM120007E

We successfully developed UltraCOOL probe that enables reduction of thermal noise and achieves extremely high sensitivity by keeping the detection coil and pre-amplifier of probe at a very low temperature. This probe makes it possible to reduce the measurement time of 13C NMR to 1/25, compared to conventional room temperature probes.

UltraCOOL Probe features

  • High sensitivity has been achieved!
    1H sensitivity is 4 times and, 13C sensitivity is 5 times higher than conventional room temperature probes.
  • Auto-tuning and a built-in FG Coil are available, which makes it possible to perform the same measurements as a normal probe!
  • Capable of long time high temperature measurements, and is extremely effective in analysis of polymer’s stereoregularity and so on!

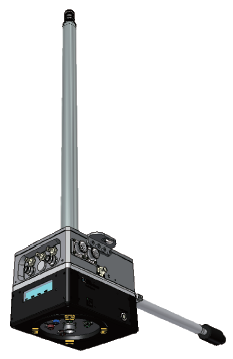

UltraCOOL Probe appearance

UltraCOOL Probe appearance

Long time measurement at 150°C

Long time measurement at 150℃
sample: polypropylene isotactic/ODCB-d4,
600 MHz, 20,000scans
Temp: 150°C Time : 19 hours

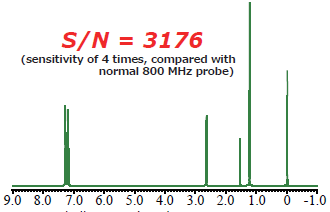

1H sensitivity

0.1% ethylbenzene/CDCl3, 800 MHz, 1scan
0.1% ethylbenzene/CDCl3, 800 MHz, 1scan

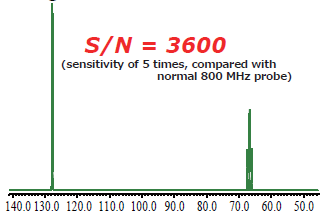

13C sensitivity

10% ASTM/Benzene-d6, 800 MHz, 1scan
10% ASTM/Benzene-d6, 800 MHz, 1scan

A part of this development has been supported by the Strategic Innovation Creation Promotion program of Japan Science and Technology Agency (JST).
