Quick solid-state NMR measurements by 8 mm MAS:29Si NMR with 1H decoupling
NM110007E

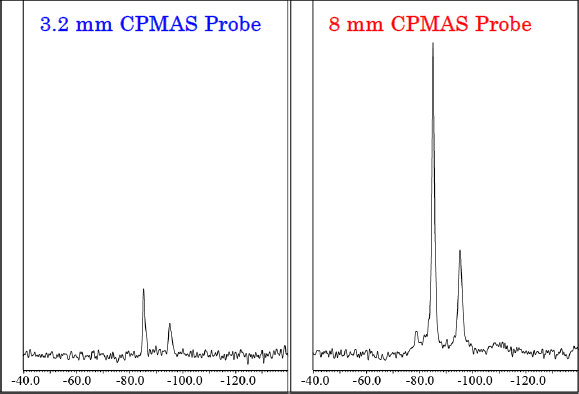

8 mm MAS realizes a very quick observation of 29Si NMR.
- Quick and sensitive observation of 29Si which normally has long T1 relaxation time.
- Fast MAS rate and strong 1H decoupling enough to 29Si observation.
- No background signal of 29Si.

Sample: synthesized tobermorite
Measurements: 29Si single pulse with 1H decoupling
Spectrometer: JNM-ECA500
MAS rate:7 kHz
Repetition time: 10 s
Number of scans: 128 scans
Measurements: 29Si single pulse with 1H decoupling
Spectrometer: JNM-ECA500
MAS rate:7 kHz
Repetition time: 10 s
Number of scans: 128 scans
Sample courtesy of
Asahi KASEI corporationSEARCH APPLICATIONS
