Space-saving carousel-type 24-slot auto sample changer ASC24

NM070013E

Features

  • Permit auto change of 24 sample tubes.
  • Space-saving installation at the top of a magnet.
  • Removable carousel-type container.
  • New controller unit attached.

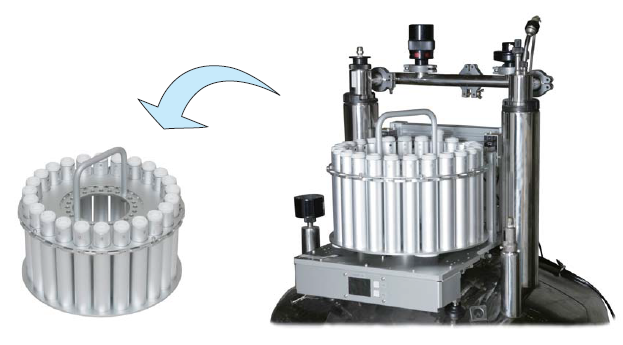

A sample container is removable when loading samples.
A sample container is removable when loading samples.

Specifications

  • Main unit with a sample container
    Number of sample tubes: 24
    Sample tube requirements:5mmφ or 10mmφ tubes for solution NMR with the length of 178 to 203mm
    (* Please inquire about 3mmφ tubes)
    Dimensions: 325mm x 400mm x 350mm Weight: 12.4kg
    (mechanical unit 8.2kg, sample container 2.8kg, sample tubes and holders 1.4kg)
  • Controller unit
    Power source:  single-phase 100-125V
                           50/60Hz 1A
    Dimensions: 280mm x 355mm x 158mm
    Weight: 4kg
  • Required system:  JNM-ECA/ECX series with NMR software Delta 4.3.6 or later
Controller unit
Controller unit
