H2BC & Edited H2BC Selective observation of 2JCH

NM070003E

Long-range correlation peaks in HMBC measurements appear depending on the magnetization transfer time 1/2 nJCH. However, the value of nJCH is not deter-mined by the bond number, and so the correlation peaks give no information on  the bond number. In particular, the close values of 2JCH and 3JCH make it difficult to discriminate the corresponding correlations. H2BC (Heteronuclear 2-Bond Correlation) detects only two-bond away correlations, clarifying the assignments. Furthermore, multiplicity edited H2BC may discriminate attached carbon numbers.

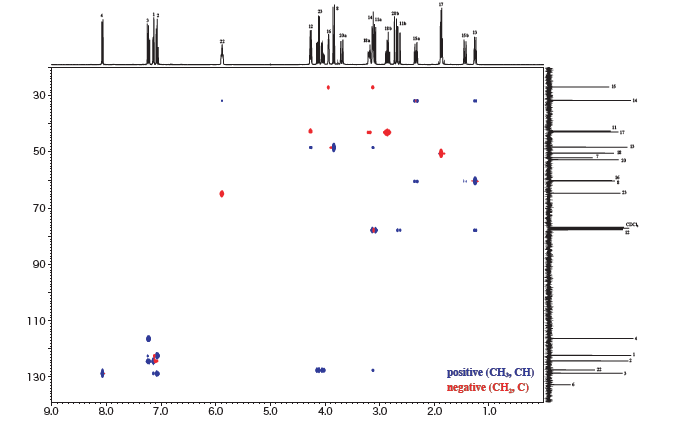

strychnineのEdited H2BC スペクトル
Edited H2BC spectrum of strychnine
1J max = 170 Hz, 1J   min = 125 Hz, y_points = 128, T = 22 msec

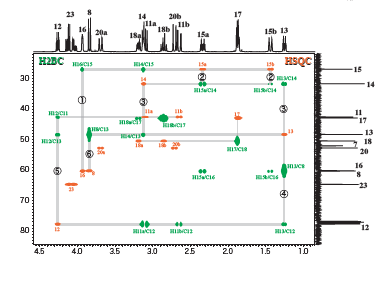

H2BC and HSQC spectra of strychnine.
H2BC and HSQC spectra of strychnine.
strychnine
strychnine

By linking correlation peaks in H2BC and HSQC spectra, 13C connectivities can be revealed. Thus, the combination of H2BC and HSQC gives a method for determining sequences of 13C bonding with 1H.

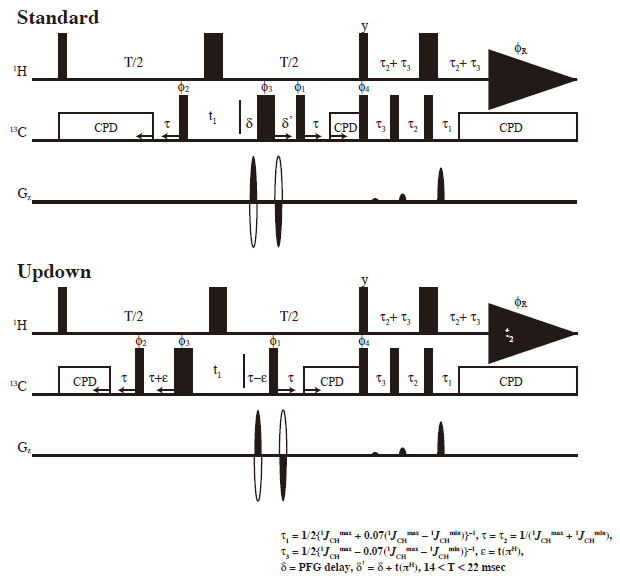

Pulse diagram of H2BC and Edited H2BC measurements.
Pulse diagram of H2BC and Edited H2BC measurements.

Reference

N.T. Nyberg, J.Ø. Duus and O.W. Sørensen, J. Am. Chem. Soc., 127, 6154 (2005)
N.T. Nyberg, J.Ø. Duus and O.W. Sørensen, Magn. Reson. Chem., 43, 971 (2005)
