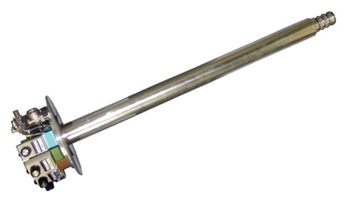

New proposal in micro sample analysis 3mm Inverse Probe for Micro Samples H3X/SV FG3 probe

NM060016E

A H3X/SV FG3 probe is best for micro-analysis with high sensitivity. When a 3mm susceptibility compensated symmetrical microcell is used, high sensitivity and high-resolution measurements can be performed with ca 30μl samples; sensitivity becomes 2.3 times higher than the conventional 3mm inverse probe. Valuable micro samples can be retrieved when 3mm tubes are used.

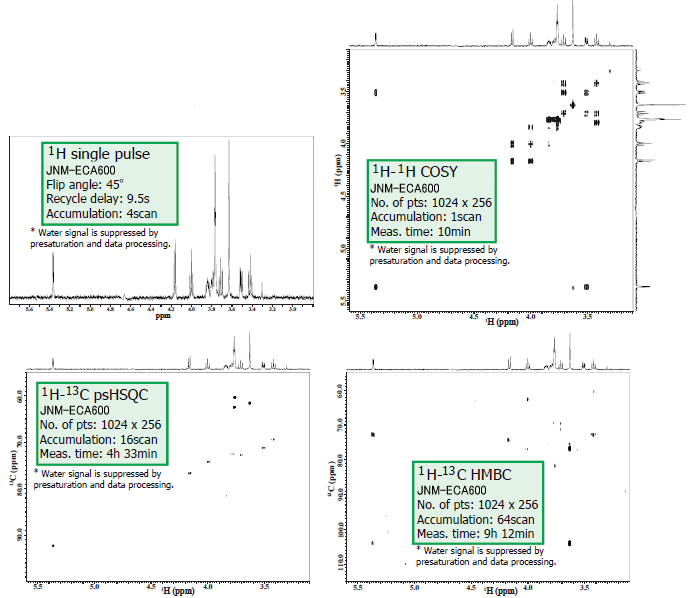

Examples

Sample: 1.95mM sucrose/D2O
(20μg in effective volume of 30μl using a 3mm susceptibility-compensated symmetrical microcell )
