Application of MICCS-NMR #3

NM060009E

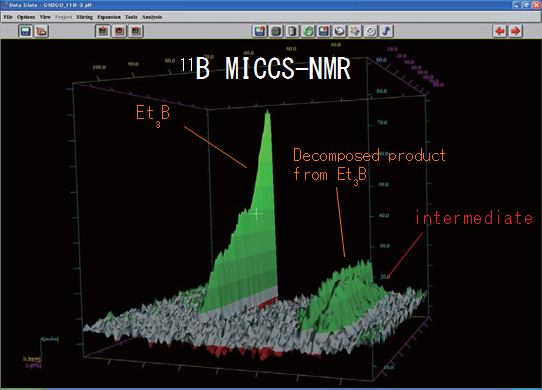

Reaction pathway analysis of radical addition  by 11B NMR

Reaction:

This note treats triethylborane  (Et3B)-mediated radical addition  to oxime ether, where a borane  complex is proposed as a key  intermediate. However, its  isolation is very difficult using  conventional methods.

Slice No. 0.5M oximeether 0.5M Et3B
1-10 4.0 0.0
10-20 3.0 1.0
20-30 2.5 1.5
30-40 2.0 2.0
40-50 1.5 2.5
50-60 1.0 3.0
60-80 0.0 4.0
* Concentration of CH2Cl2 solution.   unit : μL/min

Spectrometer: JNM-ECA400
Pulse sequence: Single pulse
Accumulation: 32scan

Sample is by courtesy of

Prof. T. Naito, Prof. O. Miyata,  and Dr. M. Ueda of Kobe Pharmaceutical University.
