【DISCONTINUED】Serial Block-face SEM JSM-7200F・7800F / Gatan 3View®2XP
DISCONTINUED
This product is no longer available.
If you would like to know the latest information about your preferred product or to find out more about alternatives, please click on the link below. We hope you will continue to use our products.
The 3View®2XP (Gatan Inc.) is incorporated into the Schottky field emission scanning electron microscope that can produce fine electron probe at a high current over long periods of time, making it possible to automatically create cross sections of the specimen and obtain images. The 3D reconstruction of the acquired images enables detailed analysis of the fine structures in three dimensions.
Features
System Outline

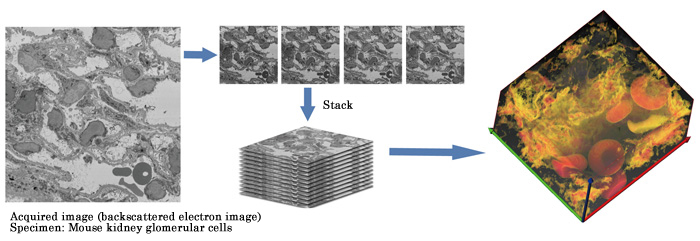

The combination of the 3View®2XP (Gatan, Inc.) with the JSM-7200F/ 7800F allows you to obtain a large quantity of slice images over a wide range. This makes it possible to perform three-dimensional reconstruction of regions of several hundred μm. The 3D reconstruction reveals cell structures in the Z direction that cannot be seen with 2D images.
Operation
Application data
Click the "replay" button in the box above, and the movie will start(for 2 minutes)
Mouse brain synapse
Segmentation data
Yellow region : Synaptic vesicle
Green region : Postsynaptic density
Red region : Postsynaptic cell
Sample : Courtesy of Professor Deniz Kirik and Lina Gefors, Bioimaging Center. Medical Faculty. Lund University.
Sweden
Specifications
| JSM-7200F | JSM-7800F | |
| Resolution | 1.2nm (30kV)、3.0nm (1kV) | 0.8nm (15kV)、1.2nm (1kV) |
| Accelerating voltage | 0.5～30kV | 0.01～30kV |
| Magnification | x 10 to 1,000,000 | x 25 to 1,000,000 |
| 3View®2XP | |
|---|---|
| Slice thickness | 15～200nm (Biological samples: 25 to 50 nm) |
| Slicing speed | 0.1 to 1.2 mm / s |
| Knife slice distance | 1.2mm |
| Stage movement range | X/Y: ±700μm Z: 600μm |
