Release of Cryogen Reclamation System - Substantially reduces the evaporation of liquid helium used in the superconducting magnet for NMR ! -
Release Date: 2023/04/14
JEOL Ltd. (President & CEO Izumi Oi) announces launch of a new Cryogen Reclamation System for NMR.
This product was jointly developed by JEOL Ltd. , a manufacturer of NMR instruments, Japan Superconductor Technology, Inc. (JASTEC) , a manufacturer of superconducting magnets, and Ulvac Cryogenics Inc. which has strengths in cryogenic technologies, by combining the cutting-edge technologies of each company.
It can substantially reduce evaporation of both liquid helium and liquid nitrogen that are inevitable as cryogen for the NMR instrument’s superconducting magnet.
Main features
Light-weight and space-saving. However, this system alone can reduce the evaporation loss of both liquid helium and liquid nitrogen.
It reduces the frequency and costs for refilling the cryogen and maximizes the operation time of the NMR instruments.
It can significantly reduce the risk of stopping NMR instruments due to difficulty in obtaining liquid helium.
The new design sufficiently reduces the vibration of the refrigerator and thus avoids affecting the quality of the spectrum.
Attachment is possible to the existing NMR instruments with the magnetic field maintained.
Product appearance

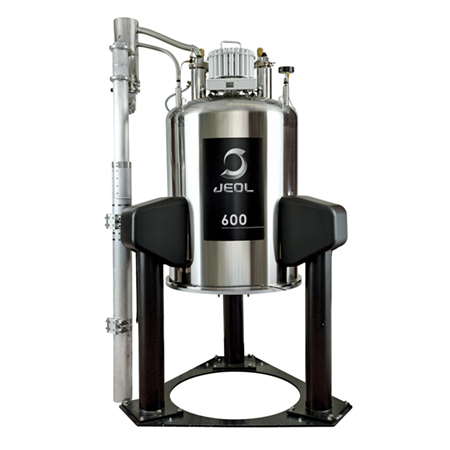

Cryogen Reclamation System attached with the magnet (Compressor unit is installed separately)
Performance of Cryogen Reclamation System

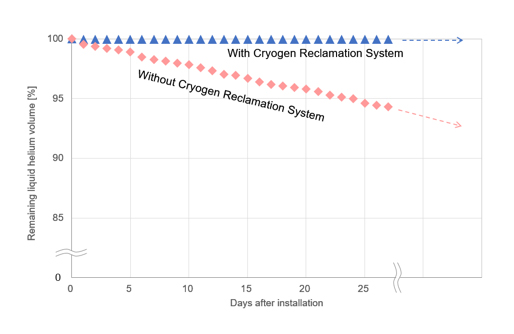

Fig.1 Comparison of the remaining liquid helium transitions
(An example when a JEOL magnet is used)
With the Cryogen Reclamation System, there is almost no change in the amount of liquid helium remaining after a number of days.

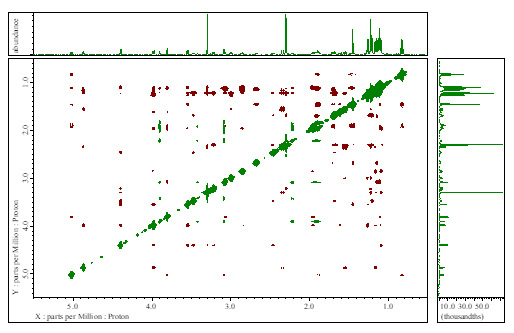

Fig. 2 Measurement example of the NMR instrument with Cryogen Reclamation System
(Erythromycin, 2D-NOESY w/o PFG)
No noise is observed, coming from the vibration of Cryogen Reclamation System, even during the measurement of small signals that are environmentally-sensitive.

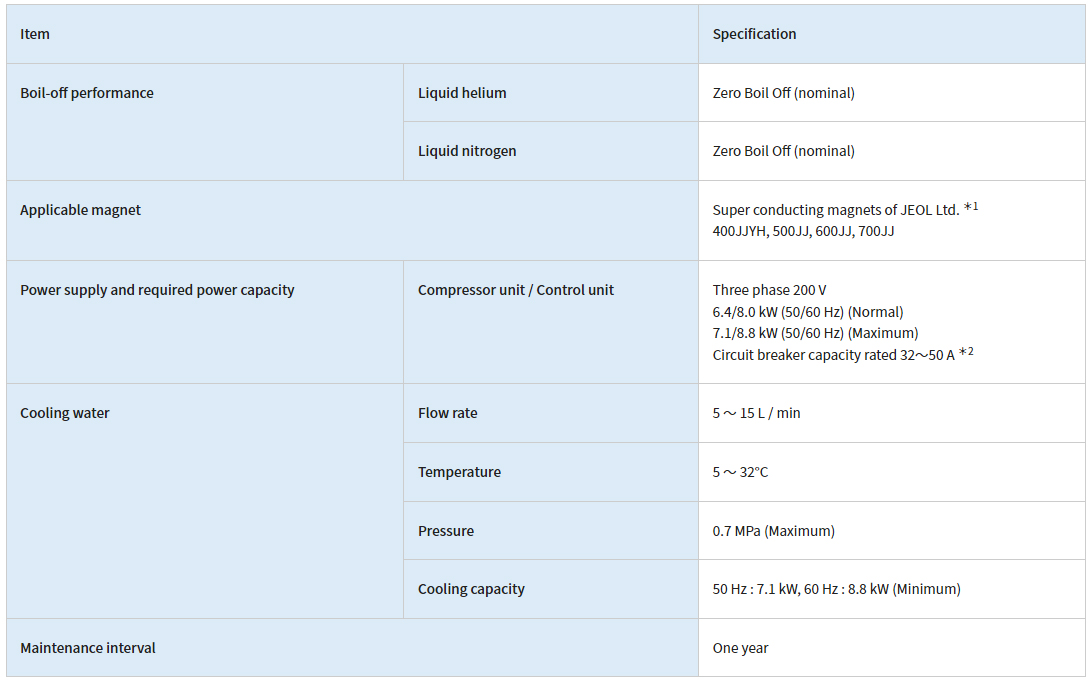

Specifications
1 Please contact us for magnets other than these listed.
2 Appearance and specifications are subject to change without notice.
Annual unit sales target
10 units / year
