High throughput
Micro volume technology
Auto rerun
Back-up capability
Features

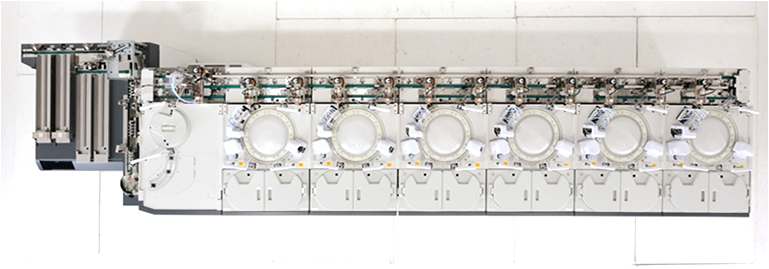

High Throughput
JCA-BM8000 series offers 1,200 TPH per module with connectivity of maximum 6 modules.
Minimizing the loss in throughput, dilution cuvettes are automatically transferred to the fastest, available module for assigned measurements.
Micro Volume Sampling Technology
JEOL's outstanding sampling technology realizes micro volume sampling (minimum 2μL for primary samples and 1μL for diluted samples) for JCA-BM8000 series.
Auto Rerun
With its unique auto rerun mechanism, JCA-BM8000 series requires no re-loading of primary sample for auto rerun.

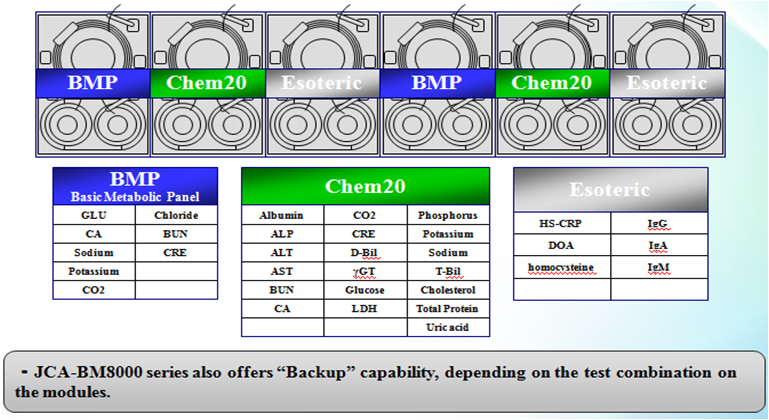

Back-up Capability
JCA-BM8000 series also offers "Backup" capability, depending on the test combination on the modules.

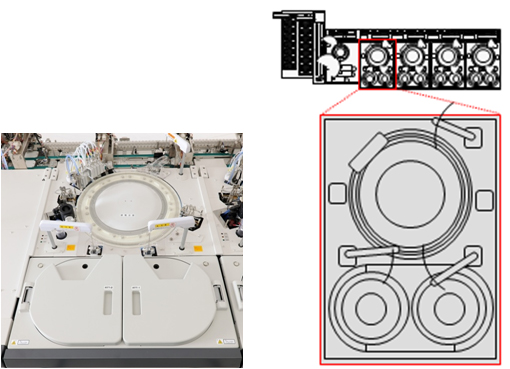

Ultra High Throughput (Analyzer Module)
The throughput of analyzer module of BM8000 series is maximum 1200 test per hour.
Each module is a random access single module so that it always maintains the highest possible throughput when integrated.
Maximum 50 reagents can be set on each module.
| Specifications | Note | |
|---|---|---|
| Analyzer Module | 1,200 test/H | Reagent Pickup Type,
Random Access Single Module |
| Minimum Sample
Volume |
1.0 μL | |
| Minimum Reaction
Volume |
50 μL | |
| On-board Reagent
availability |
Max. 50
bottles |
Available Large Bottles:
20ml, 40ml, 70ml: |
| Module Integration | Up to 6
module |
Max. 7200 test/H |

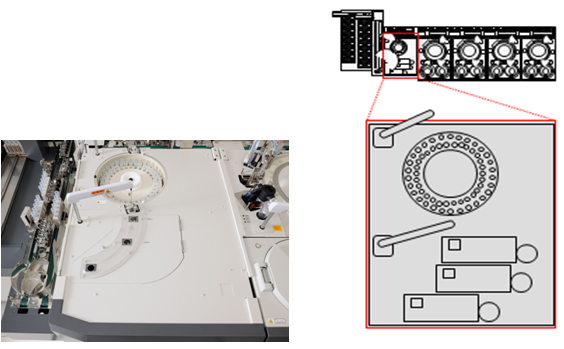

Sample Dilution Module (DEM) - ISE Units and CTT
The ISE units on the JCA-BM8000 series are 600 test/H/unit.
Maximum 3 units can be installed on the DEM.
BM8000 series also have Refrigerated Sample Tray (CTT).
You can run scheduled auto control or calibration using the CTT.
ISE Unit
| Specifications | Note | |
|---|---|---|
| ISE Unit | 600 test/H | |
| Sample Volume | Min. 22μL | |
| # of Units | Max. 3 Units | Max. 1,800 test/H |
CTT
| Specifications | Note | |
|---|---|---|
| # of Positions | 60 | |
| Refrigerated | Yes | |
| Auto Control | Available | per hour or per # of samples |
Specifications
| JCA-BM8020 | JCA-BM8040 | JCA-BM8060 | |
|---|---|---|---|
| Throughput | Max. 4200 test/H
Photometry ：Up to 2400 test/H ISE：Up to 1800 test/H |
Max. 6600 test/H
Photometry ：Up to 4800 test/H ISE：Up to 1800 test/H |
Max. 9000 test/H
Photometry ：Up to 7200 test/H ISE： Up to 1800 test/H |
| Available Assays(including ISE) | 203assays | ||
| Reaction Volume | 50 to 120μL | ||
| Clot Detector | Standard feature | ||
| Auto Hemolysis for HbA1C | Not Available | ||
| Rack Handler | Available | ||
| TLA connection | Available | ||
| Sample Loading | Rack Handler=Option:300 Samples
Sample tray：60 samples |
||
| Reaction time | 3, 4, 5, 10 minutes | ||
| Reaction Bath | Inert Oil (37°C±0.1°C) | ||
| Regent Bottle(ml) | 20, 40, 70 | ||
| Mixer | Spin mixer | ||
| Water Usage(MAX) | 59L / hour | 104L / hour | 149L / hour |
| Measurement points | Maximum 64 points (10minute reaction time) | ||
| Measurement wavelengths | 340 to 884 nm(14 wavelengths), 1 or 2 wavelengths for calculation | ||
| Size(mm) | 3155(W)×1350(D)×1266(H) | 4545(W)×1350(D)×1266(H) | 5925(W)×1350(D)×1266(H) |
| Weight(Kg) | 1260 | 1960 | 2660 |
Rack Handler (Optional)
| Model name | RH300 |
|---|---|
| The maximum number of samples loaded | 300 (5 positions times 30 racks times 2 lanes) |
| Sample containers | 5mL, 7mL, and 10mL tubes |
| Rack ID | Barcode controlled |
| Supply method | Two supply lanes of front loading
STAT rack port on side |
| Racks | Dedicated two lanes each with a tray as well as rack supply |
| Size | Dimension: 1,105 (W) × 1,315 (D) × 1,266 (H) mm, Weight: 175 kg |
Gallery
-

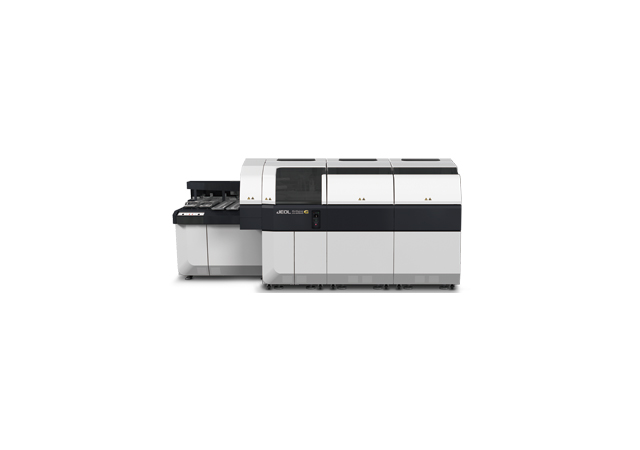

JCA-BM8020
-

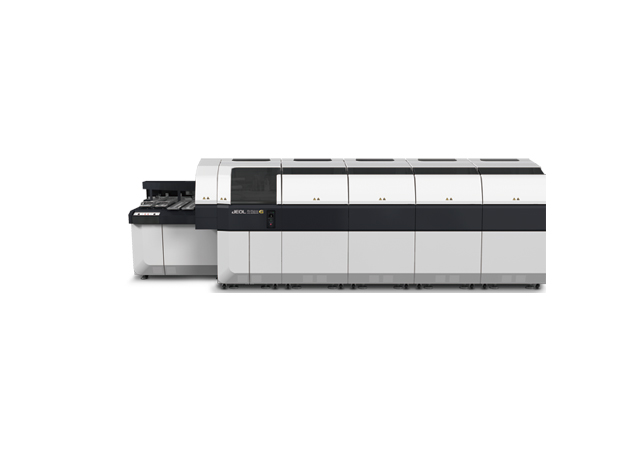

JCA-BM8040
-

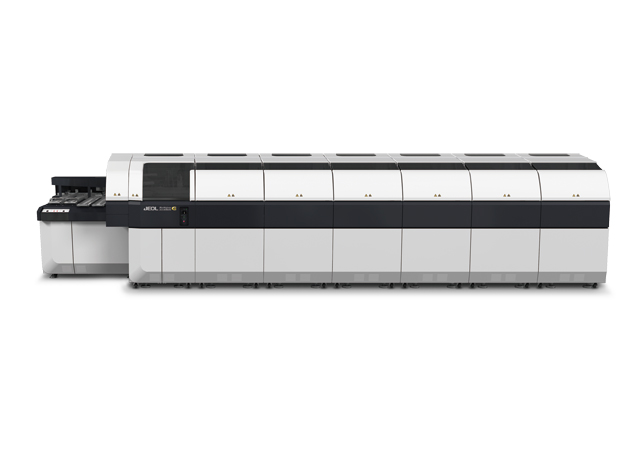

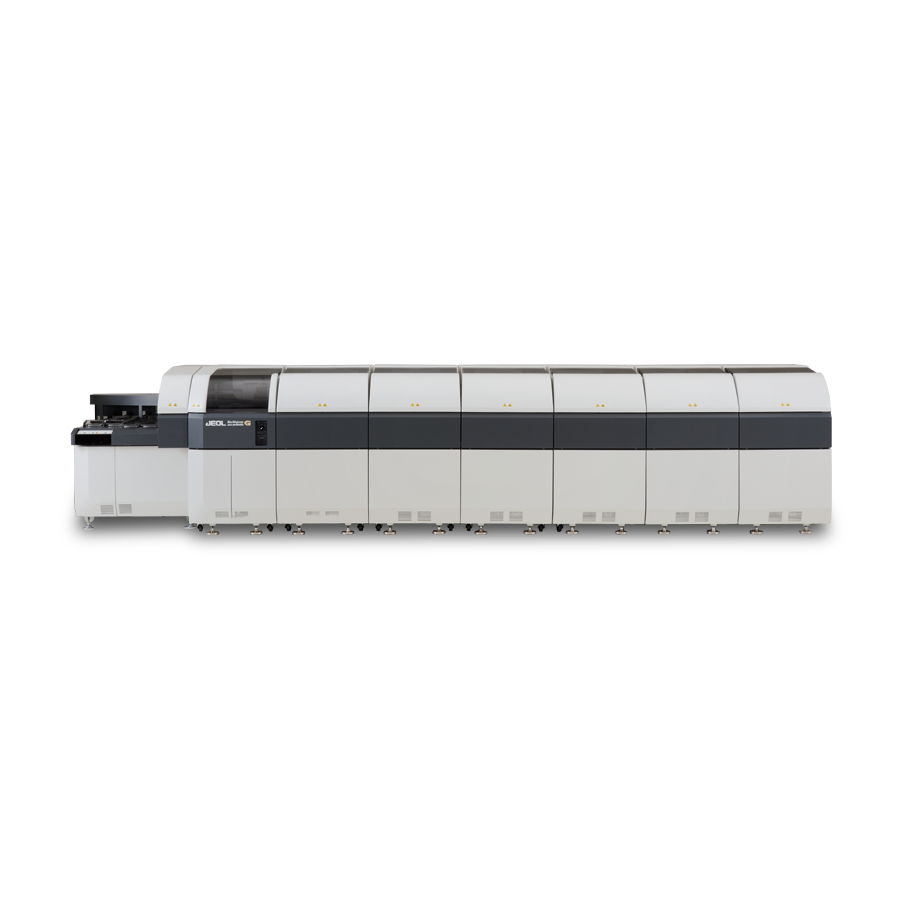

JCA-BM8060
