A compact, reliable chemistry system with versatile functions
Micro-volume technology
Automatic on-board hemolysis for HbA1c
Smart space-saving design
Max. Throughput
800T/H for Photometry
1,200T/H with ISE
Features
Compact and Speedy
Compact analyzer for limited space
Maximum 800 tests/hour (photometric only)
Flexible and Easy Operation
Easy STAT Analysis
STAT port
With one action, you can measure STAT sample. Set the STAT sample in the STAT port and slide the lever to the right.The sample ID will be scanned and the measurement will be executed.
Smart Pause / Smart Start
You can open and close the cover of Sample Tray (STT) without opening the top cover. The analyzer pauses sampling when STT cover is opened. You can add new samples and simply close the cover to restart sample analysis.

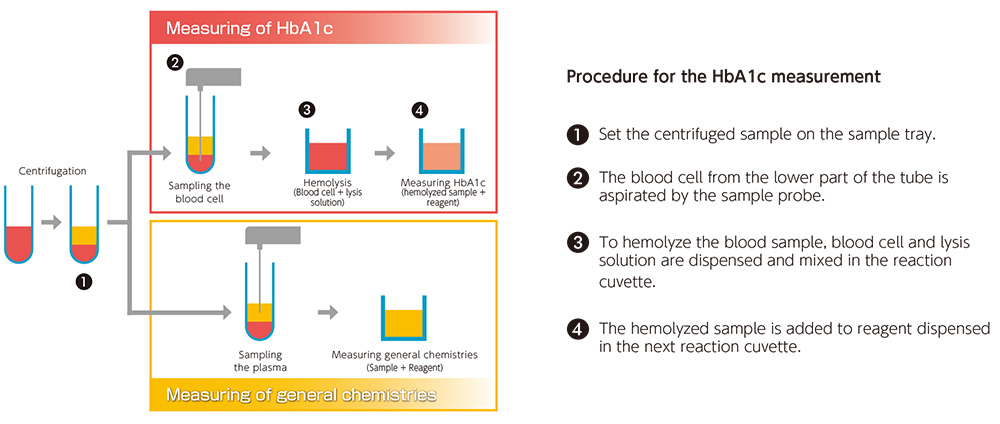

HbA1c Measurement
JCA-BM6010/C realizes walk-away HbA1c analysis with on-board hemolysis. HbA1c measurement is performed using blood cell aspirated from the bottom of the sample tube, whereas the other general chemistry assays are performed using plasma aspirated from the upper part of sample tube. Thus, JCA-BM6010/C realizes simultaneous measurement of HbA1c and general chemistry from the same sample.
Specifications
| JCA-BM6010/C | Specifications |
|---|---|
| Throughput | Max. 1,200 test/H Photometry ：800 test/H ISE：600 test/H |
| On-board Assays (including ISE) |
48 assays |
| Reaction Volume | 80 to 430μL |
| Clot Detector | Standard feature |
| Auto Hemolysis for HbA1C | Available |
| Rack Handler | Available |
| TLA connection | Available |
| Sample Loading | Rack Handler=Option:20 samples Sample tray：84 samples |
| Reaction time | 3, 4, 5, 10,15minutes |
| Reaction Bath | Inert Oil (37°C±0.1°C) |
| Regent Bottle(ml) | 20, 40, 70 |
| Mixer | Spin mixer |
| Water Usage(MAX) | 20L / hour |
| Measurement points | Maximum 42 points (Every 13.5 seconds in 10 minute reaction) |
| Measurement wavelengths | 340 to 884 nm(14 wavelengths), 1 or 2 wavelengths for calculation |
| Size(mm) | 1,220(W)×850(D)×1,108(H) |
| Weight（Kg） | 450 |
Rack Handler (Optional)
| Model name | RAmini |
|---|---|
| Sample loading | 15 samples (3 racks) |
| Sample unloading | 65 samples (13 racks) |
| Racks | Dedicated 5 position rack from JEOL |
| Rack types | Per sample category (Patient sample, calibrator, and QC sample) |
| Barcode | CODE39, NW7, ITF, JAN |
| Size | Dimensions: 1,580(W) × 1,090(D) × 1,110(H) mm, Weight: 98 kg |
Gallery
-
JCA-BM6010/C
-

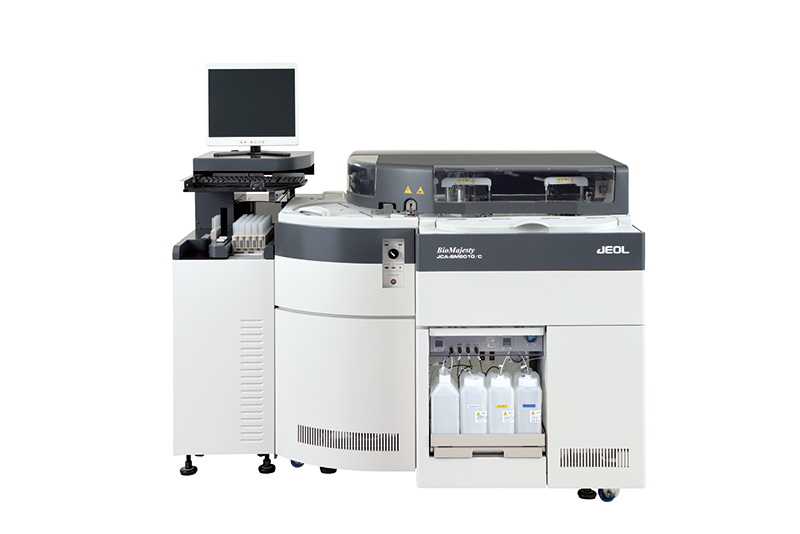

JCA-BM6010/C+RA mini
